Material：SUS304/316

Size：01/02/03/04/05

Filtration Precision：60-400μm

Temperature：≤200°C

Fabrication Process：seam

Shape of Ring Mouth：steel ring

Shape of Bottom：Round bottom



Specification	Size(mm）	Flow Rate(m³/h)	Filtration Area(m³)	Capacity(L)
01#	180*430	20	0.24	8
02#	180*810	40	0.48	17
03#	105*230	6	0.08	1.3
04#	105*380	12	0.16	2.6
05#	150*560	20	0.24	8

Remark: flow rate refers to the flow rate of the bag filterper hour under a standard atmospheric pressure, pure water with viscosity of 1 at room temperature of 25 degrees Celsius.

Common-used Ring Mouth Introduction

Ring Mouth	Material			Size
Internal Surface	PP	PE	PET	180mm	183mm
External Surface	PP	PE	PET	105mm	180mm	220mm
Steel Ring	SUS304	SUS316	Galvanized	80mm	105mm	170mm	177mm
‘F’ Ring	PP	PE	PET	105mm
150 Ring	PP	PE	PET	150mm

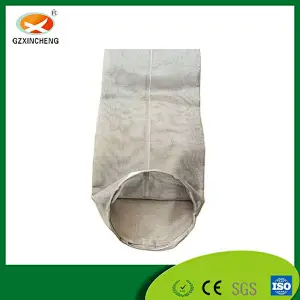

The non-deforming stainless steel spinning SUS304 or SUS316 material is woven into a net according to the specified specification, and the net is formed into a single wire net after heat setting.

The stainless steel filter bag filter has high strength and will not deform due to the change of pressure. It has the advantages of corrosion resistance, high and low temperature resistance, good wear resistance and long service life; The aperture size of that woven net filter cylinder is consistent, and the filter cylinder has accurate filtering value and can meet the filtering requirements of customer.

The monofilament weave form a smooth surface, is easy to clean, can be repeatedly used, and reduce that cost.

The ring mouth is made of stainless steel material, which is corrosion-resistant and pollution-free, and the bag body is covered with five lines to eliminate the phenomenon of bag explosion. According to the requirements can be customized non-standard size and welding ring mouth.

1.Paints & lacquer industry

2.Waste water treatment

3.Pharmaceutical industry

4.Food industry

5.Chemical industry

6.Beer, wine & spirit industry

7.Adhesive.

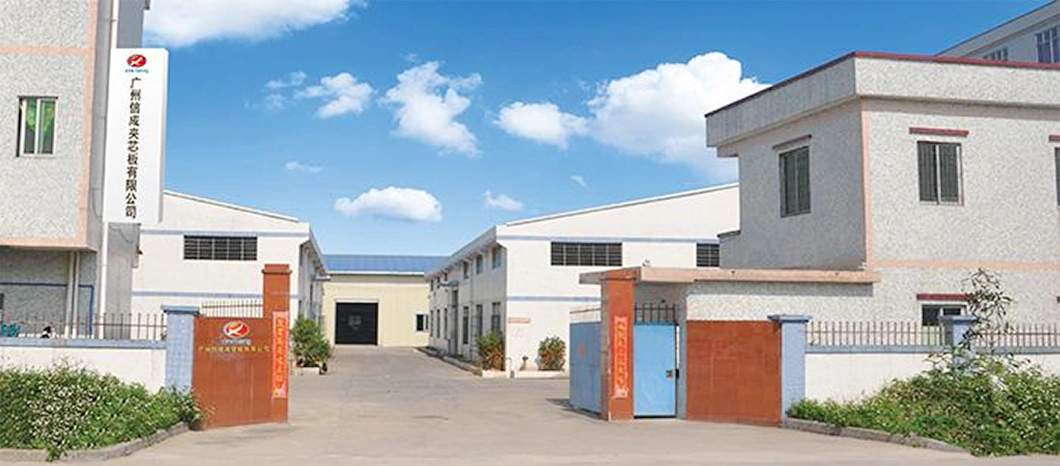

Guangzhou Xincheng New Materials Co., Limited, founded in 2012, located adjacent to Zhengguo Town, Zengcheng,Guangzhou,is a high-technolgical enterprise in the field of purification and related construction and decoration. Xincheng is composed of a color steel sandwich panel factory, a prefabricated container house factory and an air filter factory, equipmed with 3 automatic sandwich panel production lines, two high efficiency air filter production lines and other auxiliary production and inspection equipment. Adhering to the business philosophy of"let the peer respect, let the customer trust", through the cooperation with universities and scientific research institutions, Xincheng has been committed to product research and development, innovation and quality management, possessed its own invention patents and trademark, obtained CE, ROHS, SGS and other quality certifications, and its products have well sold to many places at home and abroad.
