Model NO.:XCWF-004
US $300.00-US $600.00
  • Delivery:EXW, FOB, CIF, CFR
  • Minimum order quantity:20 sets
  • Country of Origin:Guangzhou,China
  • The core filter is made of SS304, SS316, stainless steel with coating and other three materials, which can withstand weathering, strong acids and alkalis, high temperatures, solvents and other chemicals.

    Categories: Water Filter

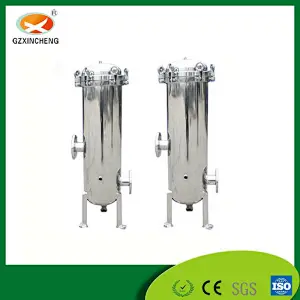

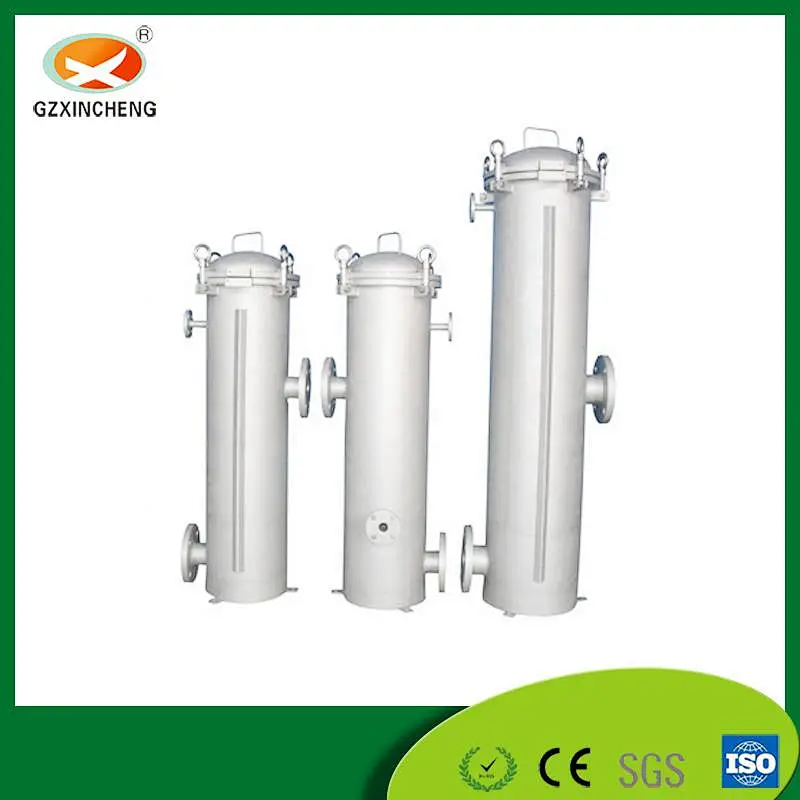

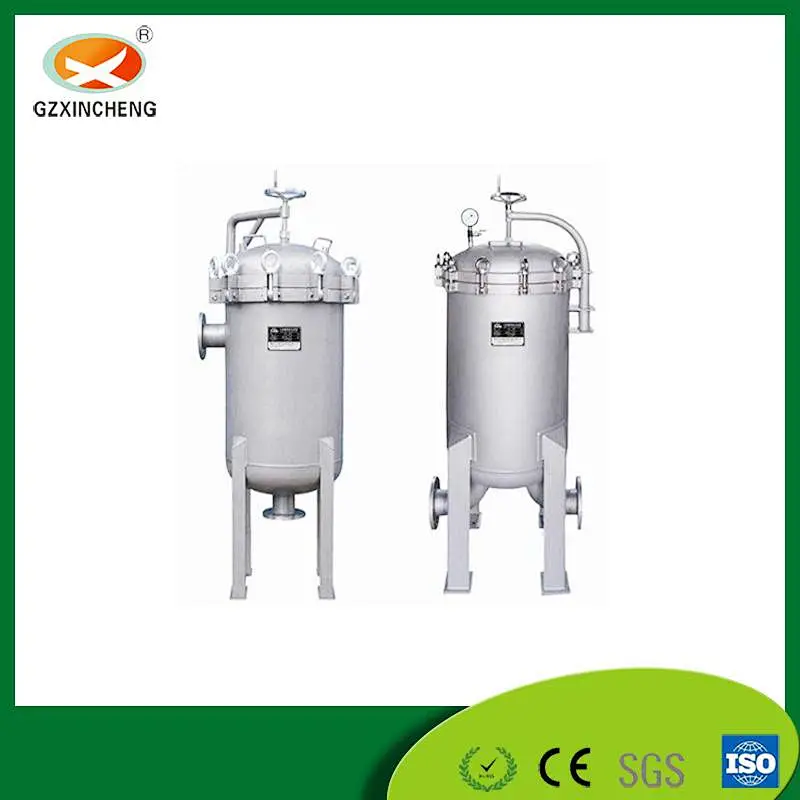

    The cartridge filter is a more commonly used filter. It is widely used in chemical, pharmaceutical, pure water and other working conditions. The materials are made of SS304, SS316, and stainless steel with coating. Various filter elements are installed according to the filtration requirements. The filter elements are mainly wire-wound filter elements. , Melt blown filter element, folding filter element, activated carbon filter element, stainless steel filter element, ceramic filter element, mainly.


    The core filter is made of SS304, SS316, stainless steel with coating and other three materials, which can withstand weathering, strong acids and alkalis, high temperatures, solvents and other chemicals. The surface and internal treatment methods of the core filter are sandblasting, ordinary polishing, and food-grade polishing. After polishing, the surface can be free of impurities and avoid secondary pollution of the liquid.

    The core filter is designed with two structures: side in and side out and side in and bottom out. Single or multiple filter elements are installed inside. The liquid is filtered from the outside to the inside under pressure. The filtered liquid flows from the inside of the filter element support frame to the outlet. The upper end of the filter is designed with a pressure plate structure, which adopts spring and screw compression methods to ensure that the contact surface between the filter element and the cover plate is flat.

    Technical parameter:

    Material: SUS304, SUS316L

    Interface form: inner wire or flange

    Sealing material: nitrile nitrile, fluorine rubber, fluorine-coated

    Applicable filter element size: 5/10/20/30/40/50/60/

    70 inches

    Design pressure: 1Mpa

    Surface treatment: sandblasting or polishing

    Cartridge filter, withstand weathering, strong acids and alkalis, high temperatures


    Guangzhou Xincheng New Materials Co., Limited, founded in 2012, located adjacent to Zhengguo Town, Zengcheng,Guangzhou,is a high-technolgical enterprise in the field of purification and related construction and decoration. Xincheng is composed of a color steel sandwich panel factory, a prefabricated container house factory and an air filter factory, equipmed with 3 automatic sandwich panel production lines, two high efficiency air filter production lines and other auxiliary production and inspection equipment. Adhering to the business philosophy of"let the peer respect, let the customer trust", through the cooperation with universities and scientific research institutions, Xincheng has been committed to product research and development, innovation and quality management, possessed its own invention patents and trademark, obtained CE, ROHS, SGS and other quality certifications, and its products have well sold to many places at home and abroad.





    Cartridge filter, withstand weathering, strong acids and alkalis, high temperatures


    Cartridge filter, withstand weathering, strong acids and alkalis, high temperatures




    1.24-hour hotline service both in English and Chinese, 7 days a week.

    2. Free samples supplied upon request with freight collected through DHL.

    3. One-stop purchase assistance is available for both new and old customers who need items other than our products from China.
    4. Site installation instruction can be provided if necessary at reasonable cost-sharing basis.




    About Packing :
    About the packing way, there are diffierent packing methods according to customer's requirement.That is to say customers can be choose the cartons/wooden cases or customized other packing way acorrdance with their needs.

    About Shipping:
    About the shipping way, customers can be choose air ,express or sea transportations.or choose your own forwarder.We will offer a variety of options for customers to choose from




    Cartridge filter, withstand weathering, strong acids and alkalis, high temperatures


    1.Q: Are you a factory or trading company?

    A:We are a professional factory so that we offer competitive factory price to our customers.

    2.Q: What's the delivery time?
    A: For products in stock, within 5-8 days after receiving your payment. For customized order, about 10-18 days after confirmed every details.

    3.Q: What is your terms of payment?
    A: T/T is accepted, 30% downpayment, and the rest of 70% should be paid before delivery. We'll show you the photos of the products and packages before you pay the balance.

    4.Q: What's your packing?
    A: Full consideration of practical situation: foam/carton box, anti-rust paper, small box and carton, etc.

    Cartridge filter, withstand weathering, strong acids and alkalis, high temperatures


    • Filtration Grade:Other
    • Medium Material:Cotton
    • Place of Origin:Guangzhou,China
    • Brand Name:GZXC
    • Model Number:XCWF-004
    • Dimension(L*W*H):customized
    • Weight:CUSTOMIZED
    • Certification:CE, ISO, ROHS, SGS
    • Warranty:1 year
    • After-sales Service Provided:No overseas service provided
