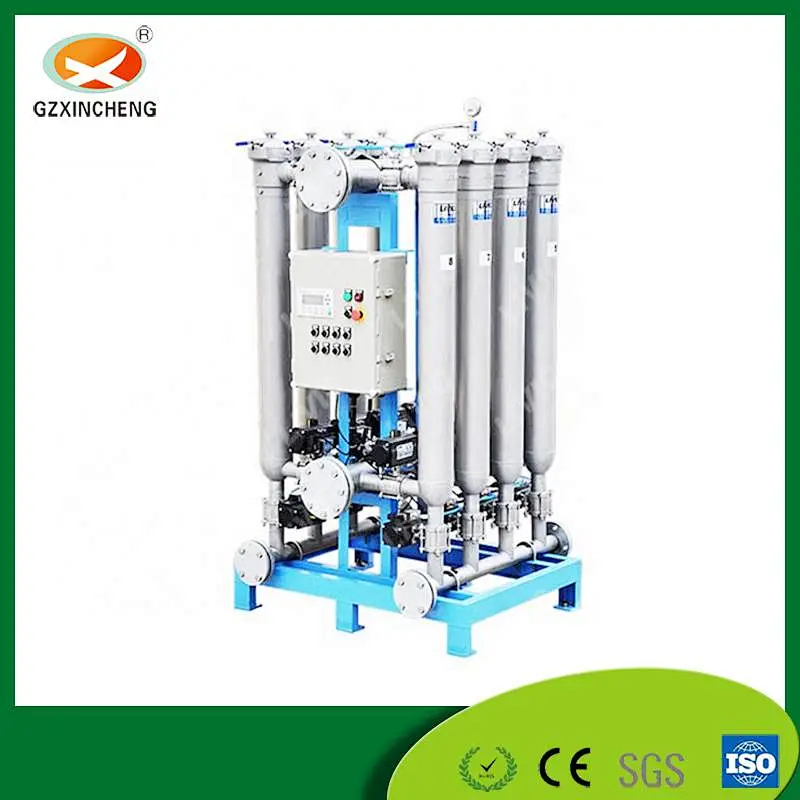

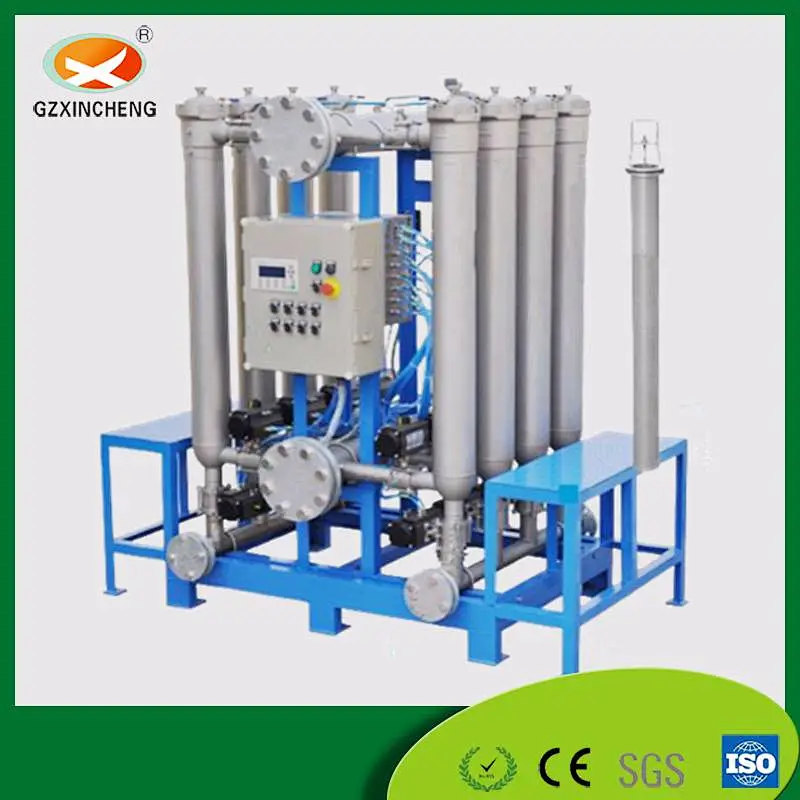

Modular self-cleaning filter
Modular self-cleaning filter
Modular self-cleaning filter

Modular self-cleaning filter

Model NO.:XCWF-008
US $1,000.00-US $4,000.00
  • Delivery:EXW, FOB, CIF, CFR
  • Minimum order quantity:10 sets
  • Country of Origin:Guangzhou,China
  • The modular self-cleaning filter is designed based on the modular concept, combining multiple standard filter units into a fully automatic filter system. The system has a high safety factor, and the number of online units can be flexibly increased according to flow requirements.

    Categories: Water Filter

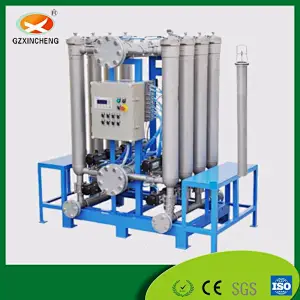

    Themodular self-cleaning filter is designed based on the modular concept, combining multiple standard filter units into a fully automatic filter system. The system has a high safety factor, and the number of online units can be flexibly increased according to flow requirements. The modular self-cleaning filter operates automatically, without manual cleaning, and has strong scalability. It can be connected with high-pressure backwashing fluid and work with low pressure difference. It adopts V-SLOT filter element to achieve thorough backwashing and consume less liquid for backwashing. The modular self-cleaning filter can purify the fluid, protect the key equipment in the back, and can also use its

    The backwash effluent recovers expensive solid particles. The product is suitable for low-viscosity liquids, such as raw water, sewage, gasoline, heavy coking gasoline, diesel, residual oil, etc.

    The liquid flows in from the inlet manifold and enters the inlet of each filter unit. The liquid penetrates the outer surface of the filter element from the outside to the inside, flows to the outlet of each filter unit, converges to the outlet header, and flows out. The particulate impurities are intercepted on the outer surface of the filter element and accumulate to form a filter. Cake, when the filter pressure difference gradually rises to a preset value (usually 70-130Kpa), or when the cleaning time period expires, the control system starts the backwash action, and backwashes each filter unit one by one, and the entire backwash process is completed , When a filter unit is backflushed, other units still filter normally. According to the different sources of backwashing liquid, the backwashing methods are divided into: filtered clear liquid recoil type and external clear liquid recoil type.

    Modular self-cleaning filter,automatic filter system

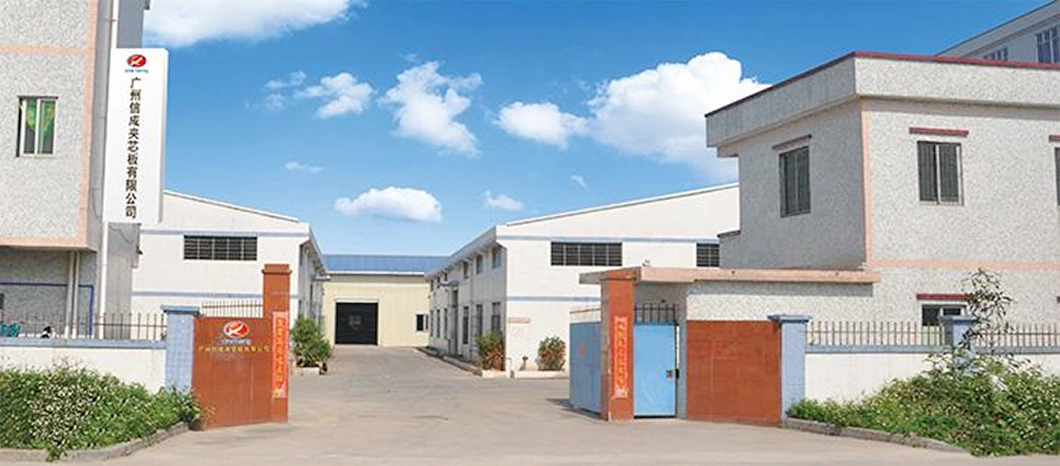

    Guangzhou Xincheng New Materials Co., Limited, founded in 2012, located adjacent to Zhengguo Town, Zengcheng,Guangzhou,is a high-technolgical enterprise in the field of purification and related construction and decoration. Xincheng is composed of a color steel sandwich panel factory, a prefabricated container house factory and an air filter factory, equipmed with 3 automatic sandwich panel production lines, two high efficiency air filter production lines and other auxiliary production and inspection equipment. Adhering to the business philosophy of"let the peer respect, let the customer trust", through the cooperation with universities and scientific research institutions, Xincheng has been committed to product research and development, innovation and quality management, possessed its own invention patents and trademark, obtained CE, ROHS, SGS and other quality certifications, and its products have well sold to many places at home and abroad.








    Modular self-cleaning filter,automatic filter system




    Modular self-cleaning filter,automatic filter system



    1.24-hour hotline service both in English and Chinese, 7 days a week.

    2. Free samples supplied upon request with freight collected through DHL.

    3. One-stop purchase assistance is available for both new and old customers who need items other than our products from China.
    4. Site installation instruction can be provided if necessary at reasonable cost-sharing basis.

    Modular self-cleaning filter,automatic filter system


    About Packing :
    About the packing way, there are diffierent packing methods according to customer's requirement.That is to say customers can be choose the cartons/wooden cases or customized other packing way acorrdance with their needs.

    About Shipping:
    About the shipping way, customers can be choose air ,express or sea transportations.or choose your own forwarder.We will offer a variety of options for customers to choose from.

    Modular self-cleaning filter,automatic filter system



    1.Q: Are you a factory or trading company?

    A:We are a professional factory so that we offer competitive factory price to our customers.

    2.Q: What's the delivery time?
    A: For products in stock, within 5-8 days after receiving your payment. For customized order, about 10-18 days after confirmed every details.

    3.Q: What is your terms of payment?
    A: T/T is accepted, 30% downpayment, and the rest of 70% should be paid before delivery. We'll show you the photos of the products and packages before you pay the balance.

    4.Q: What's your packing?
    A: Full consideration of practical situation: foam/carton box, anti-rust paper, small box and carton, etc.

    Modular self-cleaning filter,automatic filter system

    • Filtration Grade:Other
    • Medium Material:Cotton
    • Place of Origin:Guangzhou,China
    • Brand Name:GZXC
    • Model Number:XCWF-008
    • Dimension(L*W*H):customized
    • Weight:CUSTOMIZED
    • Certification:CE, ISO, ROHS, SGS
    • Warranty:1 year
    • After-sales Service Provided:No overseas service provided
