Fiberglass Air Filter Paper
Fiberglass Air Filter Paper
Fiberglass Air Filter Paper
Fiberglass Air Filter Paper
Fiberglass Air Filter Paper
Fiberglass Air Filter Paper

Fiberglass Air Filter Paper

Model NO. XCWF-003
US $300.00-US $600.00
  • Delivery:EXW, FOB, CIF, CFR
  • Minimum order quantity:20 sets
  • Country of Origin:Guangzhou,China

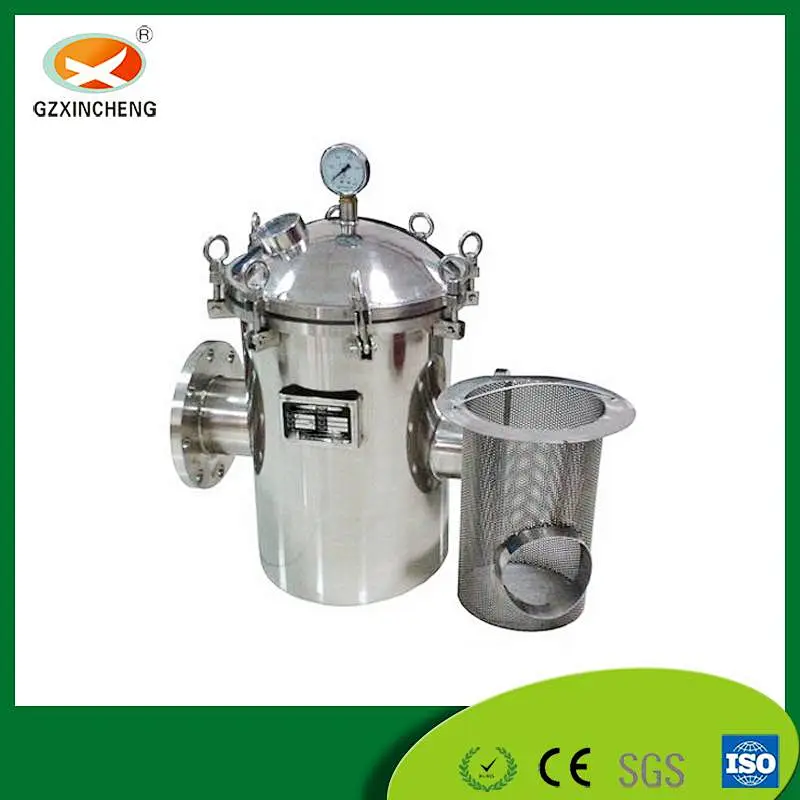

  • The inner design of the basket filter is a metal filter basket that can be taken out. When the impurity content is too high, the filter basket can be taken out. After cleaning, it can be used continuously after being put into the filter. The operation is convenient and simple.

    Categories: Water Filter

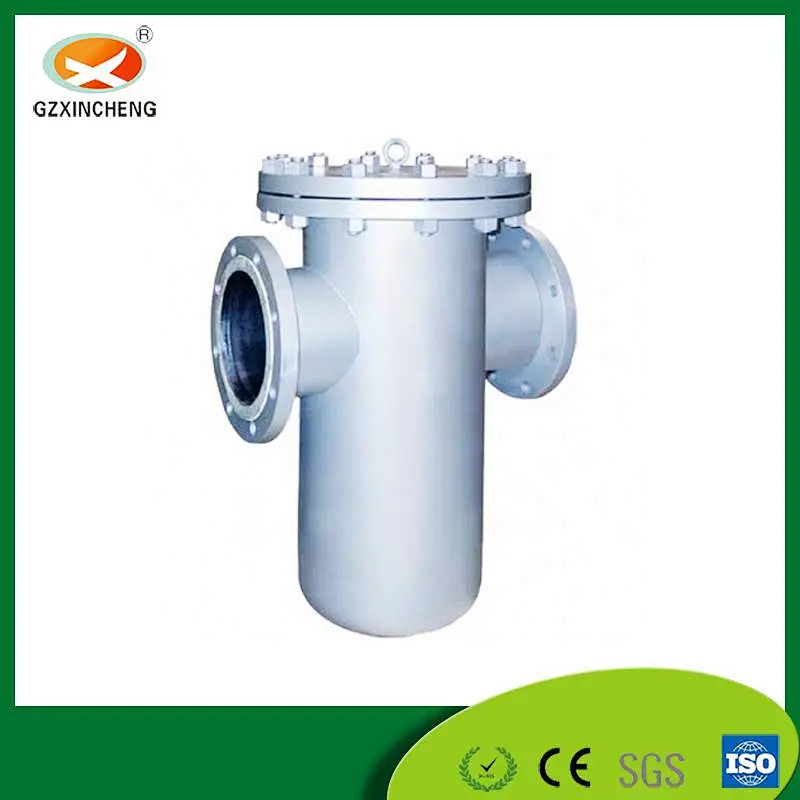

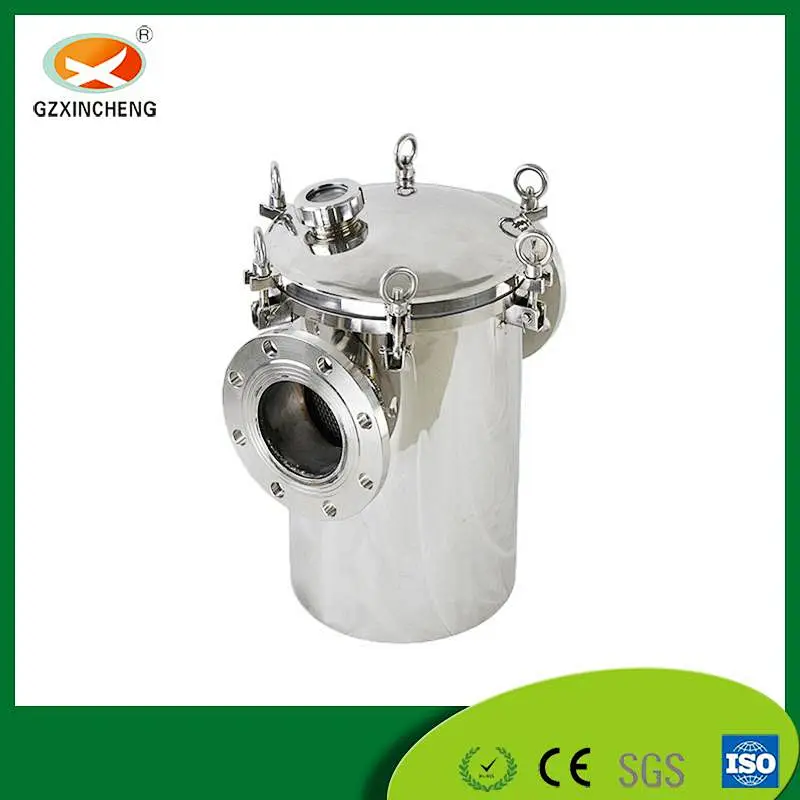

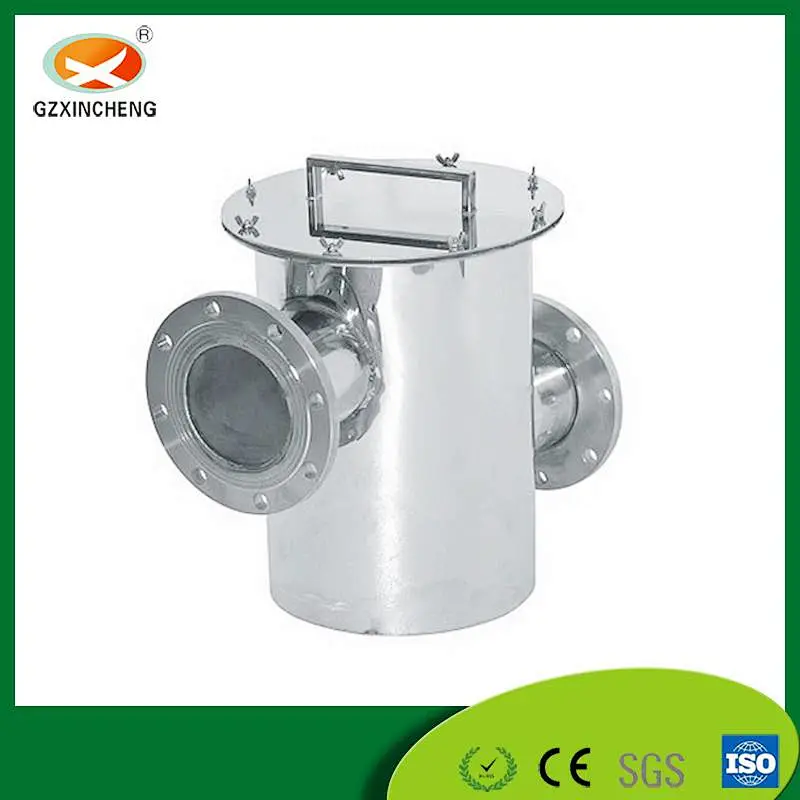

    Basket filteris an indispensable element inside the liquid filter. It is widely used in pipeline pre-filtration and the protection of the front end of the pump. The basket filter uses a metal filter basket as the filter element, with a precision range of 50-500 microns, the design pressure is 6 kg to 10 kg. Suitable for most liquid filtration conditions.





    Thebasket filter is made of SS304 or SS316L. The surface and inside of the basket filter can be sprayed to adapt to extreme chemical conditions. Different precision metal filter baskets are used inside to achieve the most suitable filtering effect.

    The basket filter is designed with wedge-shaped and flat-mouth filtration methods, which can be directly installed in the pipeline, without affecting the site area and normal liquid flow, and at the same time protecting the on-site machinery and equipment.





    1. The inner design of the basket filter is a metal filter basket that can be taken out. When the impurity content is too high, the filter basket can be taken out. After cleaning, it can be used continuously after being put into the filter. The operation is convenient and simple.

    2. The filter area of ​the basket filter can be designed between 0.03-33㎡, which can meet the requirements of various flow rates on site.

    3. The pressure design of the basket filter is between 0.6 MPa and 1 MPa, which is suitable for most on-site pressures.

    4. The use cost of the basket filter is relatively low, no consumables are produced, and the operation method is simple and convenient.

    Technical parameter:

    Optional accuracy: 10-8000μm

    Number of single filter baskets: 1-24

    Single filter area: 0. 01-30 ㎡

    Shell material: SUS304, SUS316L

    Applicable viscosity: 1-30000CPS

    Basket filter,precision range of 50-500 microns




    Guangzhou Xincheng New Materials Co., Limited, founded in 2012, located adjacent to Zhengguo Town, Zengcheng,Guangzhou,is a high-technolgical enterprise in the field of purification and related construction and decoration. Xincheng is composed of a color steel sandwich panel factory, a prefabricated container house factory and an air filter factory, equipmed with 3 automatic sandwich panel production lines, two high efficiency air filter production lines and other auxiliary production and inspection equipment. Adhering to the business philosophy of"let the peer respect, let the customer trust", through the cooperation with universities and scientific research institutions, Xincheng has been committed to product research and development, innovation and quality management, possessed its own invention patents and trademark, obtained CE, ROHS, SGS and other quality certifications, and its products have well sold to many places at home and abroad.








    Basket filter,precision range of 50-500 microns


    Basket filter,precision range of 50-500 microns




    1.24-hour hotline service both in English and Chinese, 7 days a week.

    2. Free samples supplied upon request with freight collected through DHL.

    3. One-stop purchase assistance is available for both new and old customers who need items other than our products from China.
    4. Site installation instruction can be provided if necessary at reasonable cost-sharing basis.


    About Packing :
    About the packing way, there are diffierent packing methods according to customer's requirement.That is to say customers can be choose the cartons/wooden cases or customized other packing way acorrdance with their needs.

    About Shipping:
    About the shipping way, customers can be choose air ,express or sea transportations.or choose your own forwarder.We will offer a variety of options for customers to choose from

    Basket filter,precision range of 50-500 microns


    1.Q: Are you a factory or trading company?

    A:We are a professional factory so that we offer competitive factory price to our customers.

    2.Q: What's the delivery time?
    A: For products in stock, within 5-8 days after receiving your payment. For customized order, about 10-18 days after confirmed every details.

    3.Q: What is your terms of payment?
    A: T/T is accepted, 30% downpayment, and the rest of 70% should be paid before delivery. We'll show you the photos of the products and packages before you pay the balance.

    4.Q: What's your packing?
    A: Full consideration of practical situation: foam/carton box, anti-rust paper, small box and carton, etc.

    Basket filter,precision range of 50-500 microns


    • Filtration Grade:Other
    • Medium Material:Cotton
    • Place of Origin:Guangzhou,China
    • Brand Name:GZXC
    • Model Number:XCWF-003
    • Dimension(L*W*H):customized
    • Weight:CUSTOMIZED
    • Certification:CE, ISO, ROHS, SGS
    • Warranty:1 year
    • After-sales Service Provided:No overseas service provided
