Model NO.:XCAF-BF005
US $0.50-US $2.00
  • Delivery:EXW, FOB, CIF, CFR
  • Minimum order quantity:50 pieces
  • Supply Ability:3000 pieces / Month
  • Country of Origin:Guangzhou,China
  • It has good acid and alkali resistance and folding tensile strength. It can remove traces of non-emulsified hydrocarbons from the liquid. This kind of bag filter can not only remove oil, but also remove different levels of particles according to needs.

    Categories: Water Filter


    Material:Polyester/polypropylene + oil absorbent cotton

    Size:01/02

    Filtration Precision:0.5-500μm

    Temperature:≤90℃

    Fabrication Process:hot melt/seam

    Shape of Ring Mouth:inversion/eversion/flat mouth/steel ring

    Shape of Bottom: Round bottom, flat bottom


    Specification

    Size(mm)

    Flow Rate(m³/h)

    Filtration Area(m³)

    Capacity(L)

    01#

    180*430

    20

    0.24

    8

    02#

    180*810

    40

    0.48

    17

    03#

    105*230

    6

    0.08

    1.3

    04#

    105*380

    12

    0.16

    2.6

    05#

    150*560

    20

    0.24

    8

    Remark: flow rate refers to the flow rate of the bag filterper hour under a standard atmospheric pressure, pure water with viscosity of 1 at room temperature of 25 degrees Celsius.

    Common-used Ring Mouth Introduction

    Ring Mouth

    Material

    Size

    Internal Surface

    PP

    PE

    PET

    180mm

    183mm

    External

    Surface

    PP

    PE

    PET

    105mm

    180mm

    220mm

    Steel Ring

    SUS304

    SUS316

    Galvanized

    80mm

    105mm

    170mm

    177mm

    ‘F’ Ring

    PP

    PE

    PET

    105mm

    150 Ring

    PP

    PE

    PET

    150mm

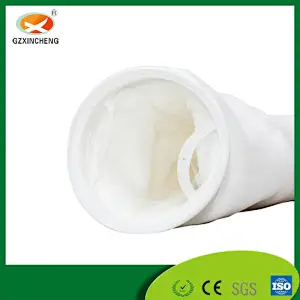

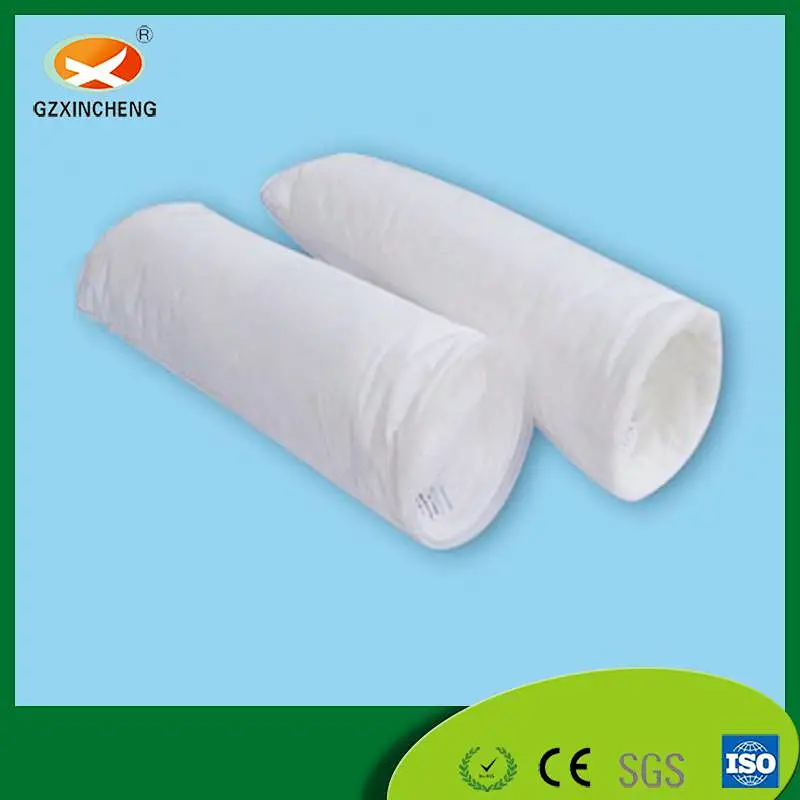

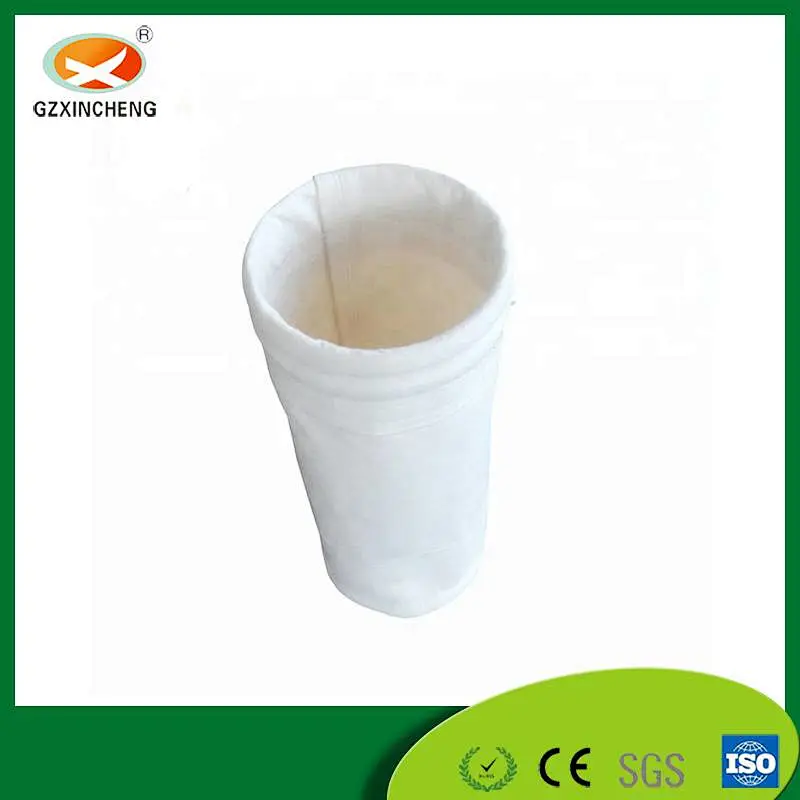

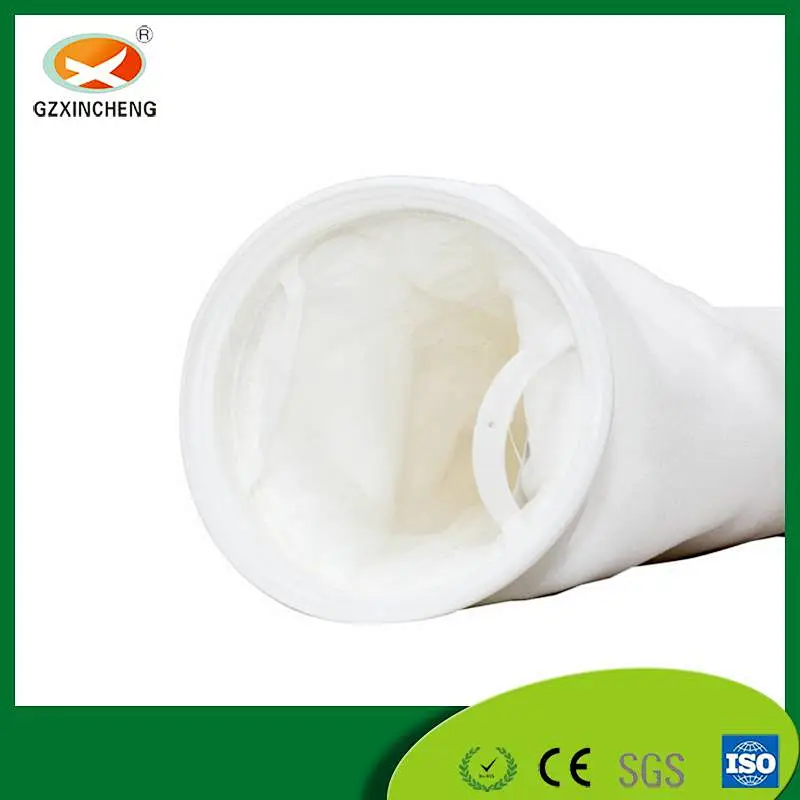

    The core of the oil removal bag filter is formed by 100% pure polypropylene multi-layer melt-blown, the melt-blown polypropylene has lipophilicity, and the filter cloth formed by the polypropylene that has the performance of adsorbing grease and has better deoiling and filtering efficiency.

    The tiny fibers in the filter layer can capture the oil molecules by using the larger tension of the oil molecules, and can intercept the tiny particles in the liquid at the same time. It has efficient oil absorption capacity and can quickly absorb all kinds of grease 12 times heavier than its own material weight.

    It has good acid and alkali resistance and folding tensile strength. It can remove traces of non-emulsified hydrocarbons from the liquid. This kind of bag filter can not only remove oil, but also remove different levels of particles according to needs.

    The core of the oil removal bag filter is formed by 100% pure polypropylene multi-layer melt-blown, the melt-blown polypropylene has lipophilicity, and the filter cloth formed by the polypropylene that has the performance of adsorbing grease and has better deoiling and filtering efficiency.

    The tiny fibers in the filter layer can capture the oil molecules by using the larger tension of the oil molecules, and can intercept the tiny particles in the liquid at the same time. It has efficient oil absorption capacity and can quickly absorb all kinds of grease 12 times heavier than its own material weight.

    It has good acid and alkali resistance and folding tensile strength. It can remove traces of non-emulsified hydrocarbons from the liquid. This kind of bag filter can not only remove oil, but also remove different levels of particles according to needs.


    1.Paints & lacquer industry

    2.Waste water treatment

    3.Pharmaceutical industry

    4.Food industry

    5.Chemical industry

    6.Beer, wine & spirit industry

    7.Adhesive.


    oil removal bag filter

    Guangzhou Xincheng New Materials Co., Limited, founded in 2012, located adjacent to Zhengguo Town, Zengcheng,Guangzhou,is a high-technolgical enterprise in the field of purification and related construction and decoration. Xincheng is composed of a color steel sandwich panel factory, a prefabricated container house factory and an air filter factory, equipmed with 3 automatic sandwich panel production lines, two high efficiency air filter production lines and other auxiliary production and inspection equipment. Adhering to the business philosophy of"let the peer respect, let the customer trust", through the cooperation with universities and scientific research institutions, Xincheng has been committed to product research and development, innovation and quality management, possessed its own invention patents and trademark, obtained CE, ROHS, SGS and other quality certifications, and its products have well sold to many places at home and abroad.








    oil removal bag filter




    oil removal bag filter


    1.24-hour hotline service both in English and Chinese, 7 days a week.

    2. Free samples supplied upon request with freight collected through DHL.

    3. One-stop purchase assistance is available for both new and old customers who need items other than our products from China.
    4. Site installation instruction can be provided if necessary at reasonable cost-sharing basis.


    About Packing :
    About the packing way, there are diffierent packing methods according to customer's requirement.That is to say customers can be choose the cartons/wooden cases or customized other packing way acorrdance with their needs.

    About Shipping:
    About the shipping way, customers can be choose air ,express or sea transportations.or choose your own forwarder.We will offer a variety of options for customers to choose from.





    oil removal bag filter


    1.Q: Are you a factory or trading company?

    A:We are a professional factory so that we offer competitive factory price to our customers.

    2.Q: What's the delivery time?
    A: For products in stock, within 5-8 days after receiving your payment. For customized order, about 10-18 days after confirmed every details.

    3.Q: What is your terms of payment?
    A: T/T is accepted, 30% downpayment, and the rest of 70% should be paid before delivery. We'll show you the photos of the products and packages before you pay the balance.

    4.Q: What's your packing?
    A: Full consideration of practical situation: foam/carton box, anti-rust paper, small box and carton, etc.

    oil removal bag filter

    • Filtration Grade:Other
    • Medium Material:Cotton
    • Place of Origin:Guangzhou,China
    • Brand Name:GZXC
    • Model Number:XCAF-BF005
    • Dimension(L*W*H):customized
    • Weight:CUSTOMIZED
    • Certification:CE, ISO, ROHS, SGS
    • Warranty:1 year
    • After-sales Service Provided:No overseas service provided
