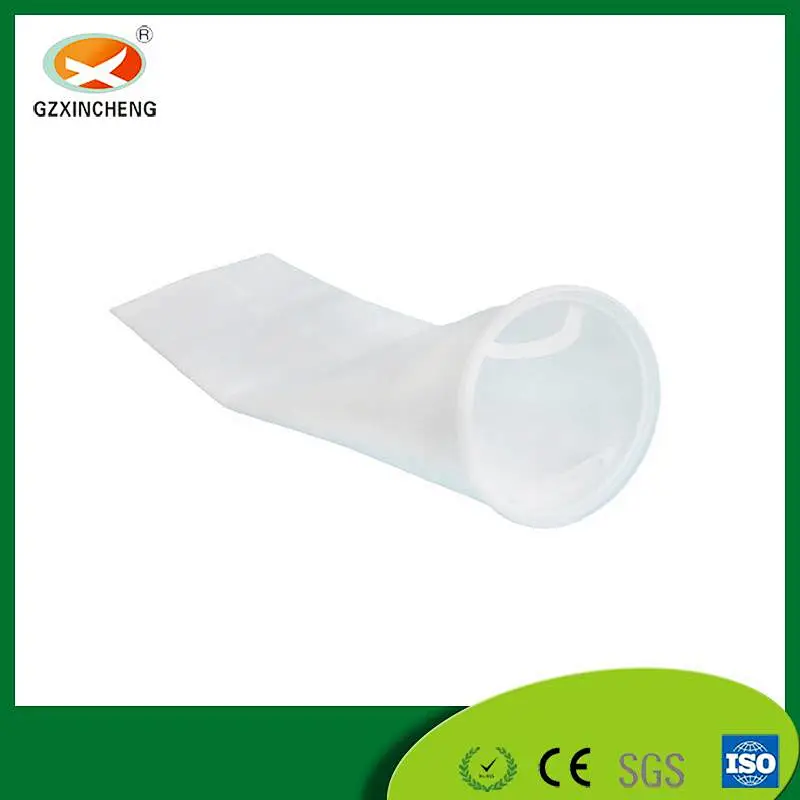

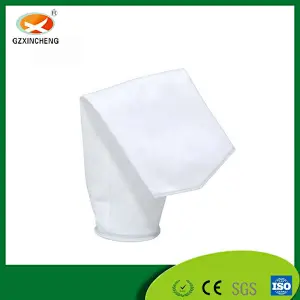

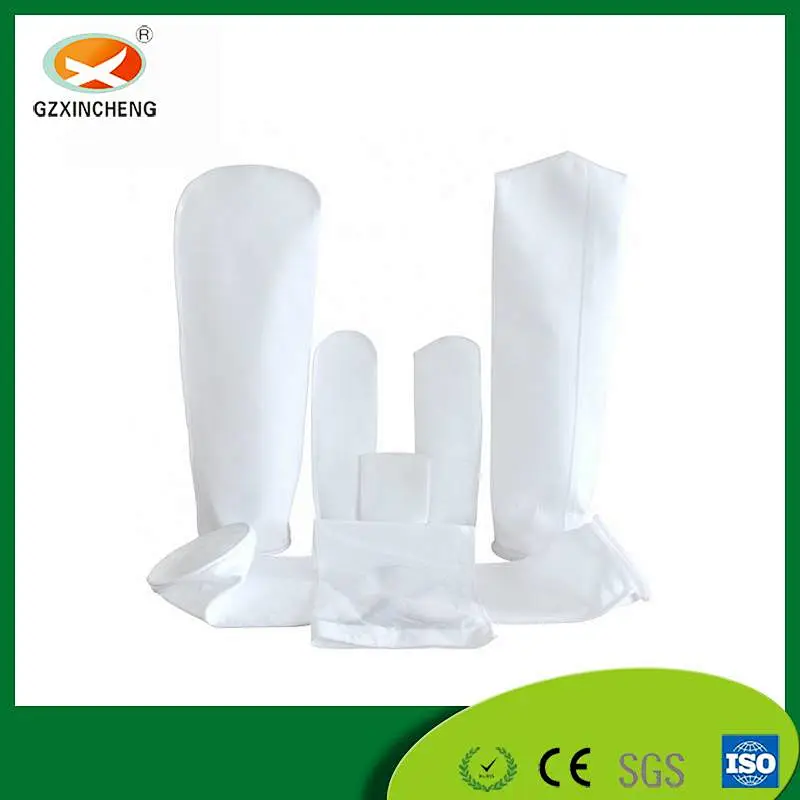

Material:PP(polypropylene)

Size: 01/02/03/04/05

Filtration Precision: 0.5--500μm

Temperature: ≤90℃

FabricationProcess: hot melt/seam

Shape of RingMouth: inversion/eversion/flat mouth/steel ring

Shapeof Bottom: sharp bottom, round bottom, arc bottom, flat bottom



Specification	Size(mm）	Flow Rate(m³/h)	Filtration Area(m³)	Capacity(L)
01#	180*430	20	0.24	8
02#	180*810	40	0.48	17
03#	105*230	6	0.08	1.3
04#	105*380	12	0.16	2.6
05#	150*560	20	0.24	8

Remark:flow rate refers to the flow rate of the bagfilterper hour under a standard atmospheric pressure, pure water with viscosity of 1 at room temperature of 25 degrees Celsius.

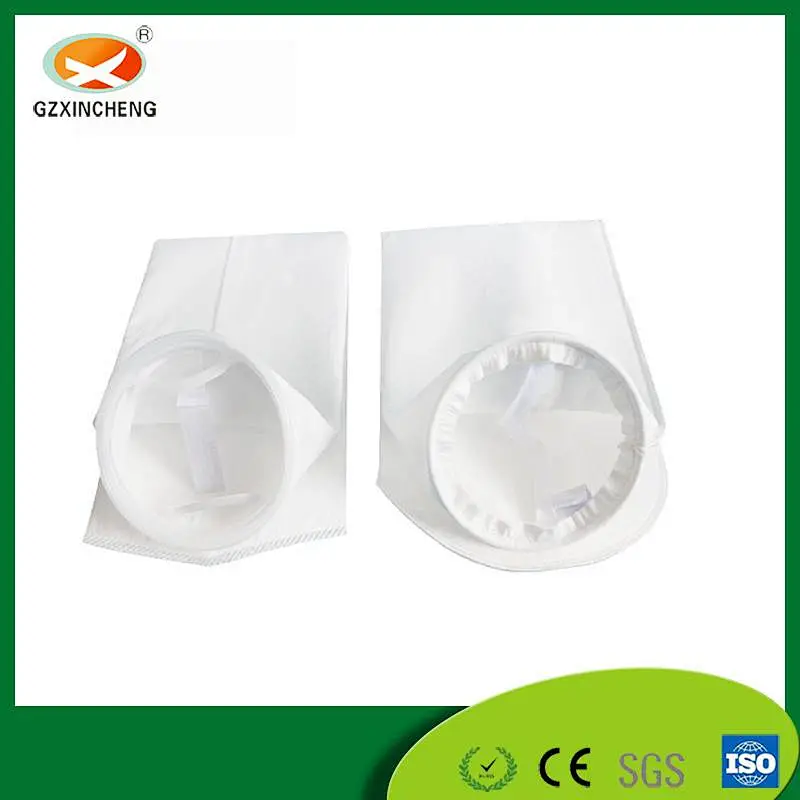

Common-used Ring MouthIntroduction

RingMouth	Material			Size
Internal Surface	PP	PE	PET	180mm	183mm
External Surface	PP	PE	PET	105mm	180mm	220mm
Steel Ring	SUS304	SUS316	Galvanized	80mm	105mm	170mm	177mm
‘F’ Ring	PP	PE	PET	105mm
150 Ring	PP	PE	PET	150mm

The surface is treated by special calendering/singing, which can effectively prevent the fiber from falling off and polluting the filtrate. The puffy and uniform three-dimensional filter layer has a very high ability to capture solid and colloidal particles. The high strength long fiber makes the filter bag have a stable filtering effect and a long service life.

1.Paints & lacquer industry

2.Waste water treatment

3.Pharmaceutical industry

4.Food industry

5.Chemical industry

6.Beer, wine & spirit industry

7.Adhesive.

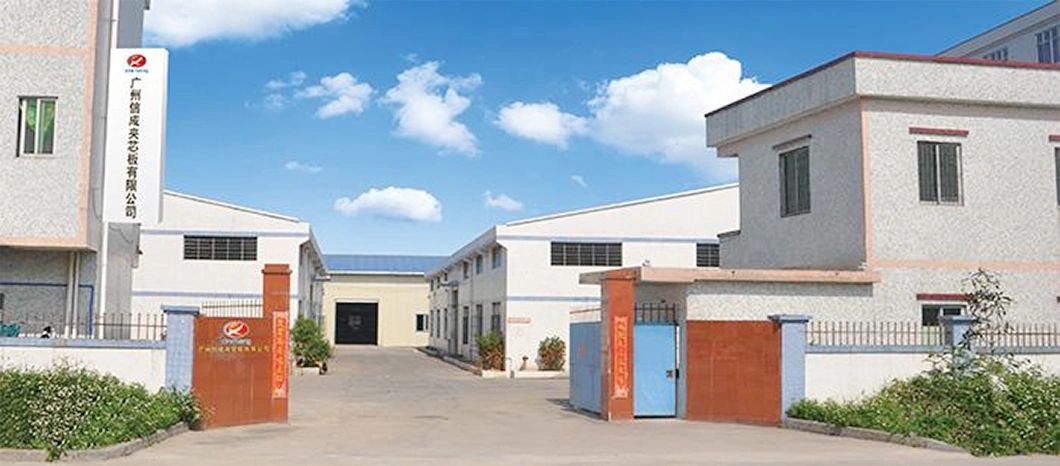

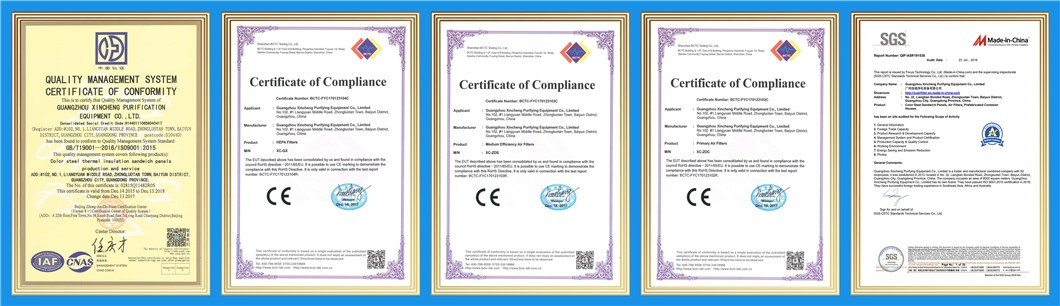

Guangzhou Xincheng New Materials Co., Limited, founded in 2012, located adjacent to Zhengguo Town, Zengcheng,Guangzhou,is a high-technolgical enterprise in the field of purification and related construction and decoration. Xincheng is composed of a color steel sandwich panel factory, a prefabricated container house factory and an air filter factory, equipmed with 3 automatic sandwich panel production lines, two high efficiency air filter production lines and other auxiliary production and inspection equipment. Adhering to the business philosophy of"let the peer respect, let the customer trust", through the cooperation with universities and scientific research institutions, Xincheng has been committed to product research and development, innovation and quality management, possessed its own invention patents and trademark, obtained CE, ROHS, SGS and other quality certifications, and its products have well sold to many places at home and abroad.



1.24-hour hotline service both in English and Chinese, 7 days a week.

2. Free samples supplied upon request with freight collected through DHL.

3. One-stop purchase assistance is available for both new and old customers who need items other than our products from China.
4. Site installation instruction can be provided if necessary at reasonable cost-sharing basis.

1.Q: Are you a factory or trading company?

A:We are a professional factory so that we offer competitive factory price to our customers.

2.Q: What's the delivery time?
A: For products in stock, within 5-8 days after receiving your payment. For customized order, about 10-18 days after confirmed every details.

3.Q: What is your terms of payment?
A: T/T is accepted, 30% downpayment, and the rest of 70% should be paid before delivery. We'll show you the photos of the products and packages before you pay the balance.

4.Q: What's your packing?
A: Full consideration of practical situation: foam/carton box, anti-rust paper, small box and carton, etc.
