Material:PE(polyester)
Size:01/02/03/04/05
Filtration Precision:0.5--500μm
Temperature:≤120℃
Fabrication Process:hot melt/seam
Shape of Ring Mouth:inversion/eversion/flat mouth/steel ring
Shape of Bottom:sharp bottom, round bottom, arc bottom, flat bottom
Specification | Size(mm) | Flow Rate(m³/h) | Filtration Area(m³) | Capacity(L) |
01# | 180*430 | 20 | 0.24 | 8 |
02# | 180*810 | 40 | 0.48 | 17 |
03# | 105*230 | 6 | 0.08 | 1.3 |
04# | 105*380 | 12 | 0.16 | 2.6 |
05# | 150*560 | 20 | 0.24 | 8 |
Remark: flow rate refers to the flow rate of the bag filterper hour under a standard atmospheric pressure, pure water with viscosity of 1 at room temperature of 25 degrees Celsius.
Ring Mouth | Material | Size |
Internal Surface | PP | PE | PET | 180mm | 183mm | | |
External Surface | PP | PE | PET | 105mm | 180mm | 220mm | |
Steel Ring | SUS304 | SUS316 | Galvanized | 80mm | 105mm | 170mm | 177mm |
‘F’ Ring | PP | PE | PET | 105mm | | | |
150 Ring | PP | PE | PET | 150mm | | | |

The use of high-purity fiber materials produced by welding or seam, fiber fabric organization loose, high-rate increase the capacity of the impurities, the fiber material is a compound closure mode, can effectively interception of solid and soft particles, liquid particles in the impurity is intercepted in the fabric surface, and small impurities are caught in the deep material And that filt is ensured not to be damage due to the increase of pressure in the using process, so that the filter has high filtering efficiency. The cloth surface of the filter bag is subjected to high-temperature heat treatment, and an instant sintering technology or calendering treatment is applied, so that the phenomenon that fibers fall off due to high-speed impact of liquid on the surface of the cloth when the material is filtered can be effectively prevented.
1.Paints & lacquer industry
2.Waste water treatment
3.Pharmaceutical industry
4.Food industry
5.Chemical industry
6.Beer, wine & spirit industry
7.Adhesive.

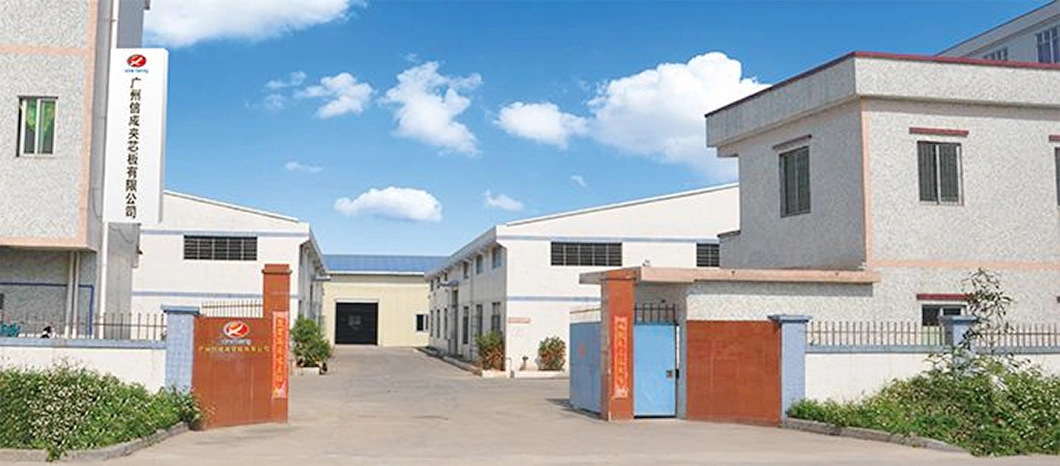

Guangzhou Xincheng New Materials Co., Limited, founded in 2012, located adjacent to Zhengguo Town, Zengcheng,Guangzhou,is a high-technolgical enterprise in the field of purification and related construction and decoration. Xincheng is composed of a color steel sandwich panel factory, a prefabricated container house factory and an air filter factory, equipmed with 3 automatic sandwich panel production lines, two high efficiency air filter production lines and other auxiliary production and inspection equipment. Adhering to the business philosophy of"let the peer respect, let the customer trust", through the cooperation with universities and scientific research institutions, Xincheng has been committed to product research and development, innovation and quality management, possessed its own invention patents and trademark, obtained CE, ROHS, SGS and other quality certifications, and its products have well sold to many places at home and abroad.






1.24-hour hotline service both in English and Chinese, 7 days a week.
2. Free samples supplied upon request with freight collected through DHL.
3. One-stop purchase assistance is available for both new and old customers who need items other than our products from China.
4. Site installation instruction can be provided if necessary at reasonable cost-sharing basis.
About Packing :
About the packing way, there are diffierent packing methods according to customer's requirement.That is to say customers can be choose the cartons/wooden cases or customized other packing way acorrdance with their needs.
About Shipping:
About the shipping way, customers can be choose air ,express or sea transportations.or choose your own forwarder.We will offer a variety of options for customers to choose from.

1.Q: Are you a factory or trading company?
A:We are a professional factory so that we offer competitive factory price to our customers.
2.Q: What's the delivery time?
A: For products in stock, within 5-8 days after receiving your payment. For customized order, about 10-18 days after confirmed every details.
3.Q: What is your terms of payment?
A: T/T is accepted, 30% downpayment, and the rest of 70% should be paid before delivery. We'll show you the photos of the products and packages before you pay the balance.
4.Q: What's your packing?
A: Full consideration of practical situation: foam/carton box, anti-rust paper, small box and carton, etc.
