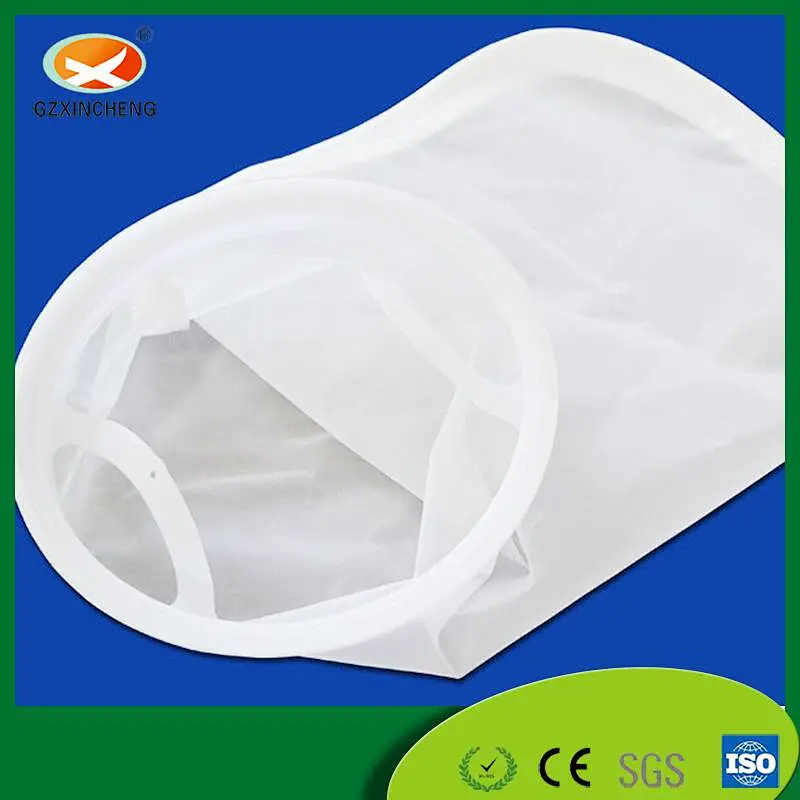

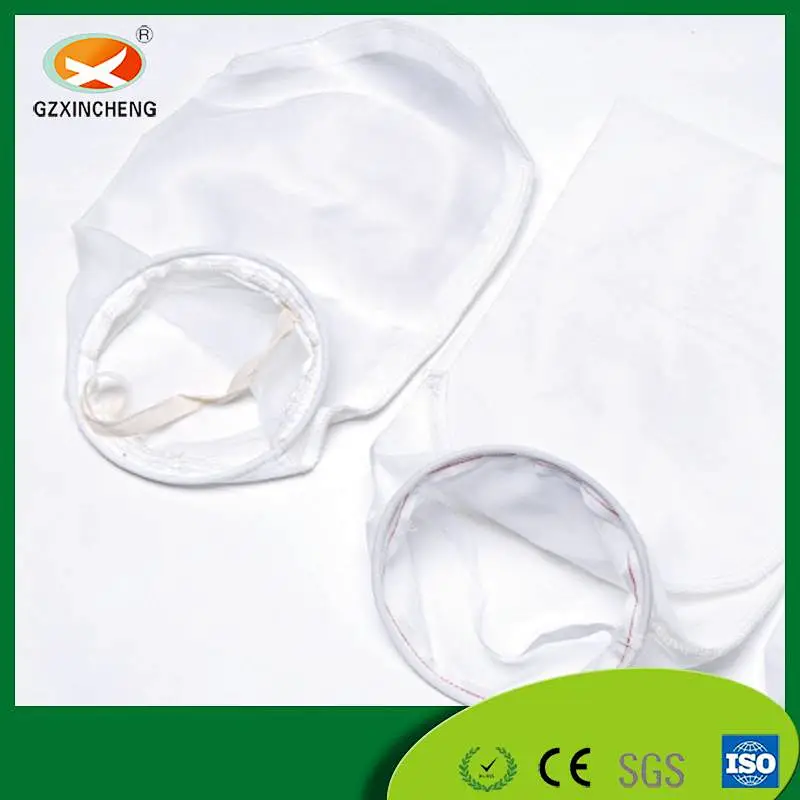

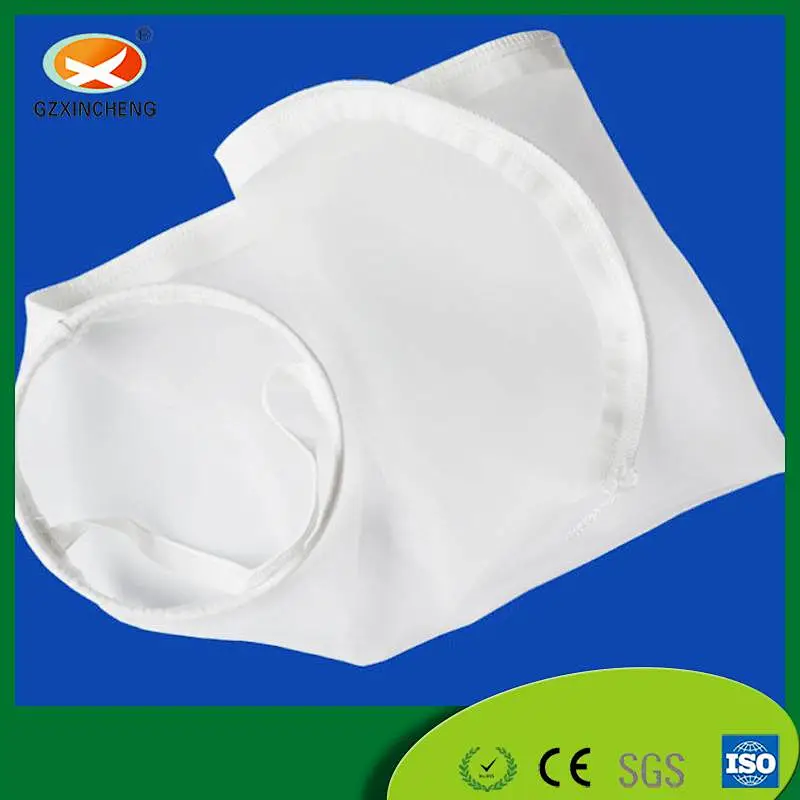

NMO Nylon Monofilament Liquid Bag Filter

Model NO.:XCAF-BF003
  • Delivery:EXW, FOB, CIF, CFR
  • Minimum order quantity:50 pieces
  • Supply Ability:3000 pieces / Month
  • Country of Origin:Guangzhou,China
  • Liquid bag filter mainly adopts PP, PE, PET as main filtration material. It can

    Categories: Water Filter

    1.Material:Nylon

    2.Size:01/02/03/04/05

    3.Filtration Precision:25-1200 μm

    4.Temperature:≤90°C

    5.Fabrication Process:hot melt/seam

    6.Shape of Bottom: Round bottom, flat bottom

    7.Shape of Ring Mouth:inversion/eversion/flat mouth/steel ring


    Specification

    Size(mm)

    Flow Rate(m³/h)

    Filtration Area(m³)

    Capacity(L)

    01#

    180*430

    20

    0.24

    8

    02#

    180*810

    40

    0.48

    17

    03#

    105*230

    6

    0.08

    1.3

    04#

    105*380

    12

    0.16

    2.6

    05#

    150*560

    20

    0.24

    8

    Remark: flow rate refers to the flow rate of the bag filterper hour under a standard atmospheric pressure, pure water with viscosity of 1 at room temperature of 25 degrees Celsius.

    Common-used Ring Mouth Introduction

    Ring Mouth

    Material

    Size

    Internal Surface

    PP

    PE

    PET

    180mm

    183mm

    External

    Surface

    PP

    PE

    PET

    105mm

    180mm

    220mm

    Steel Ring

    SUS304

    SUS316

    Galvanized

    80mm

    105mm

    170mm

    177mm

    ‘F’ Ring

    PP

    PE

    PET

    105mm

    150 Ring

    PP

    PE

    PET

    150mm



    Nylon monofilament filter bag is particularly suitable for water-based paint, 98% of the current use of manufacturers are buying their own nylon monofilament mesh. When in use, the filter is cut into a proper size by an operator according to specific conditions and then wrapped on the filter. After our field investigation, we found that more than 80% of the operators of enterprises are very casual in the reduction. Excessive reduction, on the one hand, excessive use, on the other hand, the loss is also very large. It is recommended to use monofilament filter bags made by professional manufacturers to ensure the quality of filtrate.

    The monofilament screen mesh structure can directly intercept that impurity in the filtrate on the surface of the material, so it is also called surface filtration type. The filter bag has the advantages that the monofilament structural material can be repeatedly cleaned and used, and the consumption cost is low, but the filter bag is easy to cause surface blockage due to a surface filtering mode. Therefore, it is most suitable for coarse filtration with low precision, and the filtration precision is 25-1200um.


    1.Paints & lacquer industry

    2.Waste water treatment

    3.Pharmaceutical industry

    4.Food industry

    5.Chemical industry

    6.Beer, wine & spirit industry

    7.Adhesive.

    NMO Bag Filter,nylon monofilament bag filter,Round bottom, flat bottom


    NMO Bag Filter,nylon monofilament bag filter,Round bottom, flat bottom

    NMO Bag Filter,nylon monofilament bag filter,Round bottom, flat bottom


    NMO Bag Filter,nylon monofilament bag filter,Round bottom, flat bottom


    1.24-hour hotline service both in English and Chinese, 7 days a week.

    2. Free samples supplied upon request with freight collected through DHL.

    3. One-stop purchase assistance is available for both new and old customers who need items other than our products from China.
    4. Site installation instruction can be provided if necessary at reasonable cost-sharing basis.


    NMO Bag Filter,nylon monofilament bag filter,Round bottom, flat bottom


    1.Q: Are you a factory or trading company?

    A:We are a professional factory so that we offer competitive factory price to our customers.

    2.Q: What's the delivery time?
    A: For products in stock, within 5-8 days after receiving your payment. For customized order, about 10-18 days after confirmed every details.

    3.Q: What is your terms of payment?
    A: T/T is accepted, 30% downpayment, and the rest of 70% should be paid before delivery. We'll show you the photos of the products and packages before you pay the balance.

    4.Q: What's your packing?
    A: Full consideration of practical situation: foam/carton box, anti-rust paper, small box and carton, etc.

    NMO Bag Filter,nylon monofilament bag filter,Round bottom, flat bottom

    • After-sales Service Provided:No overseas service provided
    • Warranty:1 year
    • Certification:CE, ISO, ROHS, SGS
    • Weight:CUSTOMIZED
    • Dimension(L*W*H):customized
    • Model Number:XCAF-BF003
    • Brand Name:GZXC
    • Place of Origin:Guangzhou,China
    • Medium Material:Cotton
    • Filtration Grade:Other
