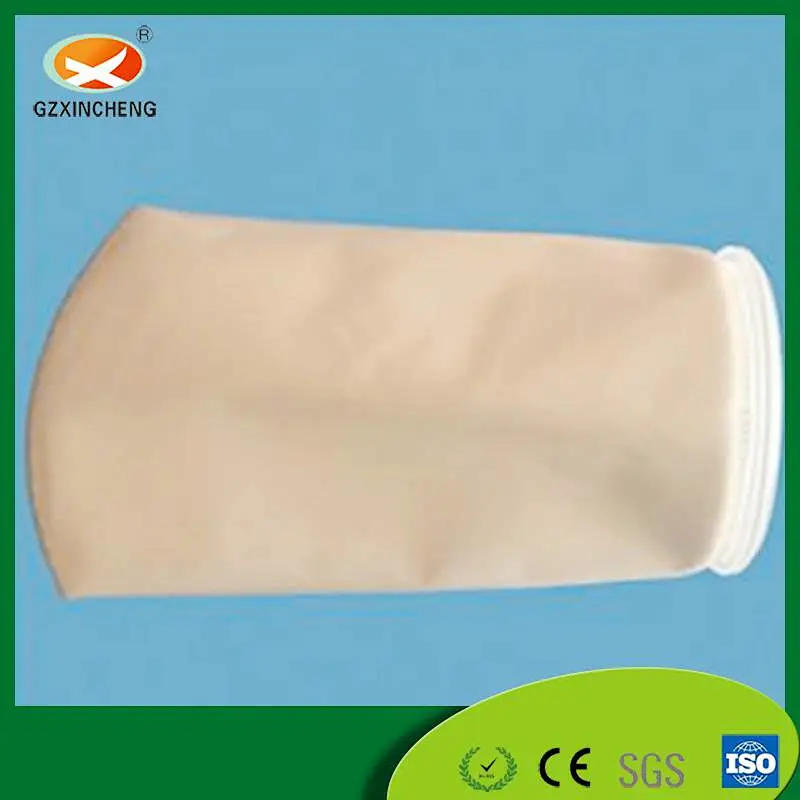

Material：Polyester/Polypropylene

Size：01/02

Filtration Precision：0.1-200um

Temperature：≤120℃

Fabrication process：hot melt

Shape of ring mouth：inversion/eversion/flat mouth

Bottom shape：Round bottom, flat bottom



Specification	Size(mm）	Flow Rate(m³/h)	Filtration Area(m³)	Capacity(L)
01#	180*430	20	0.24	8
02#	180*810	40	0.48	17
03#	105*230	6	0.08	1.3
04#	105*380	12	0.16	2.6
05#	150*560	20	0.24	8

Remark: flow rate refers to the flow rate of the bag filterper hour under a standard atmospheric pressure, pure water with viscosity of 1 at room temperature of 25 degrees Celsius.

Common-used Ring Mouth Introduction

Ring Mouth	Material			Size
Internal Surface	PP	PE	PET	180mm	183mm
External Surface	PP	PE	PET	105mm	180mm	220mm
Steel Ring	SUS304	SUS316	Galvanized	80mm	105mm	170mm	177mm
‘F’ Ring	PP	PE	PET	105mm
150 Ring	PP	PE	PET	150mm

1.The outer surface layer of the absolute precision filter bag is subjected to high-temperature surface heat treatment, namely, instant sintering technology or calendering treatment is applied, which can effectively prevent fibers from being lost due to high-speed impact of liquid during filtration, and the phenomenon of filtrate pollution caused by separation of fibers is avoided.

2. The double-layer outer protective layer avoids the problem of fiber shedding caused by friction with the net basket. Suitable for food, beverage and pharmaceutical industries. The one-piece construction and soldered bottom with a unique joining method provide a stronger, more resilient solder seal. 100% pure melt-blown polypropylene construction with no added resins, cements or surface treatments. Full hot melt welding technology.

3. Absolute precision bag filter is a compound interception mode, effective removal of solid and soft particles, that is, larger particles of impurities are intercepted in the fiber surface, and fine particles are captured and filter material deep sink, to ensure that the use of the process will not be damaged due to increased pressure, with high filtration efficiency, filtration efficiency as high as 99.99%, long service life. Depending on the customer's actual operating environment, it can be standard or long-acting type.

1.Paints & lacquer industry

2.Waste water treatment

3.Pharmaceutical industry

4.Food industry

5.Chemical industry

6.Beer, wine & spirit industry

7.Adhesive.

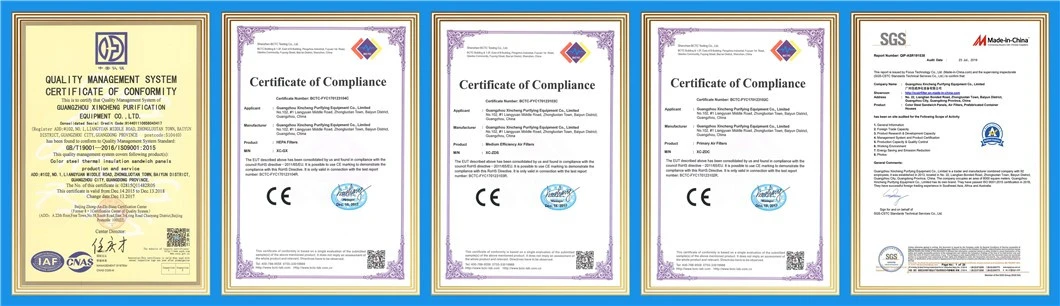

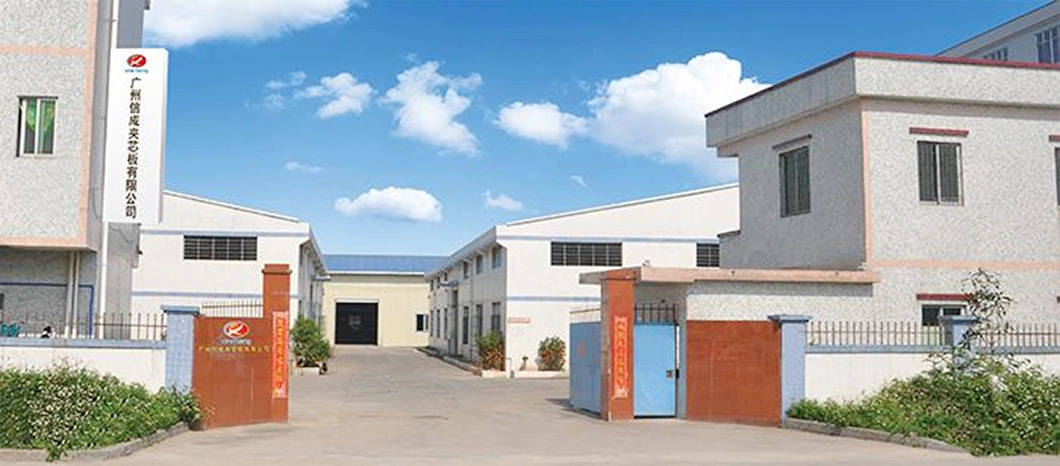

Guangzhou Xincheng New Materials Co., Limited, founded in 2012, located adjacent to Zhengguo Town, Zengcheng,Guangzhou,is a high-technolgical enterprise in the field of purification and related construction and decoration. Xincheng is composed of a color steel sandwich panel factory, a prefabricated container house factory and an air filter factory, equipmed with 3 automatic sandwich panel production lines, two high efficiency air filter production lines and other auxiliary production and inspection equipment. Adhering to the business philosophy of"let the peer respect, let the customer trust", through the cooperation with universities and scientific research institutions, Xincheng has been committed to product research and development, innovation and quality management, possessed its own invention patents and trademark, obtained CE, ROHS, SGS and other quality certifications, and its products have well sold to many places at home and abroad.



1.24-hour hotline service both in English and Chinese, 7 days a week.

2. Free samples supplied upon request with freight collected through DHL.

3. One-stop purchase assistance is available for both new and old customers who need items other than our products from China.
4. Site installation instruction can be provided if necessary at reasonable cost-sharing basis.
