MERV 13 bag filter used in HVAC system
MERV 13 bag filter used in HVAC system
F9 bag filter used in air purification system
non-woven fabric filter
MERV 13 pocket air filter used in filtration system

MERV13 Non-woven Fabric F9 Bag Pocket Air filter

Model NO.:XCAF-M005-1
  • Delivery:FOB, CFR, CIF, EXW
  • Minimum order quantity:50 pieces
  • Supply Ability:3000 pieces / Month
  • Country of Origin:Guangzhou,China
  • Stock Time:6 Days
  • F9/MERV 13 bag air filter used non-woven fabric as main core material, which can be used in HVAC System for hospital, etc.

    MERV13 filter, bag filter, air filter, F9 filter, pocket filter, medium efficiency filter

    1.Specification:292*592*600mm(Customized)6. Min. Order Quantity:50 pieces
    2.Medium Material:Non-woven fabric 7.Efficiency Grade:F9/MERV13
    3.Frame:Aluminum alloy/Galvanized plate/
    Stainless steel plate
    8.Application:Ventilation System of Workshop/Warehouse/Construction Building/Container House/Factory
    4.Type:Medium Efficiency Bag/Pocket filter9.Filter Object
    Particles:
    ≥0.5 microns
    5.Humidity:≤100%RH10.Instantaneous Temperature Resistance:≤120ºC






    MERV13 filter, bag filter, air filter, F9 filter, pocket filter, medium efficiency filter


    Model

    W(mm)

    H(mm)

    D(mm)

    Number of pockets

    Rated air flow/Initial

    Pressure drop(m³/h&pa)

    Filtration area

    EN779

    Filter material color

    95%

    592

    592

    600

    6

    2550/75

    3600/126

    5000/216

    4.4

    F9

    Deep Yellow

    290

    592

    600

    3

    1250/75

    1800/127

    2500/216

    2.2

    592

    592

    600

    8

    2550/65

    3400/50

    4250/115

    5.6

    290

    592

    600

    4

    1250/65

    1700/50

    2100/115

    2.8





    MERV13 filter, bag filter, air filter, F9 filter, pocket filter, medium efficiency filter

    1.Washable.The bag filter produced by our company can be used repeatedly and the filter has a service life of up to one year.
    2.Stable performance. The chemical fiber filter material produced by the company's bag filter does not contain static electricity, and there is no component that is temporarily enhanced by static electricity in the filtration index. The pharmaceutical filter material is not damaged, and the filtration efficiency is as good as after cleaning.
    3.Unique structure. The outer frame adopts special aluminum profile or galvanized plate frame, which is convenient for complete recovery, utilization and high-quality U-shaped aluminum alloy beading, so that the filter bag has low structural resistance and long service life.
    4.Bag filter can bear more working pressure, less pressure loss,low operating cost and obvious energy-saving effect.

    MERV13 filter, bag filter, air filter, F9 filter, pocket filter, medium efficiency filter

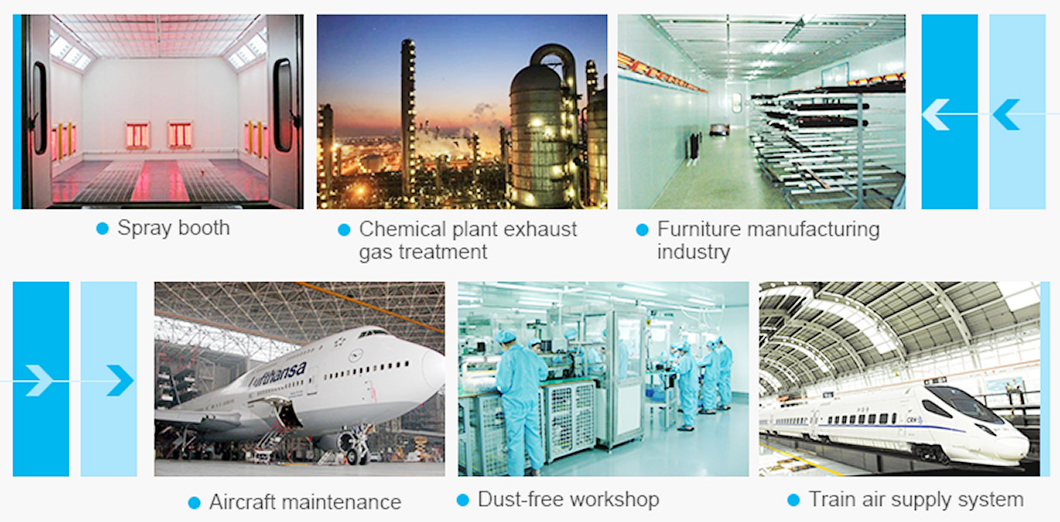

    1.General building air filtration.
    2. Filtration before HEPA air filter.
    3. Secondary filtration of purification workshop.
    4. Filtration system for hospitals, pharmaceutical factories, electronics factories, spray paint rooms and other higher requirements for clean air.

    MERV13 filter, bag filter, air filter, F9 filter, pocket filter, medium efficiency filter

    MERV13 filter, bag filter, air filter, F9 filter, pocket filter, medium efficiency filter
    Guangzhou Xincheng New Materials Co., Limited, founded in 2012, located adjacent to Zhengguo Town, Zengcheng,Guangzhou,is a high-technolgical enterprise in the field of purification and related construction and decoration. Xincheng is composed of a color steel sandwich panel factory, a prefabricated container house factory and an air filter factory, equipmed with 3 automatic sandwich panel production lines, two high efficiency air filter production lines and other auxiliary production and inspection equipment. Adhering to the business philosophy of"let the peer respect, let the customer trust", through the cooperation with universities and scientific research institutions, Xincheng has been committed to product research and development, innovation and quality management, possessed its own invention patents and trademark, obtained CE, ROHS, SGS and other quality certifications, and its products have well sold to many places at home and abroad.

    MERV13 filter, bag filter, air filter, F9 filter, pocket filter, medium efficiency filter

    MERV13 filter, bag filter, air filter, F9 filter, pocket filter, medium efficiency filter

    MERV13 filter, bag filter, air filter, F9 filter, pocket filter, medium efficiency filter




    MERV13 filter, bag filter, air filter, F9 filter, pocket filter, medium efficiency filter

    MERV13 filter, bag filter, air filter, F9 filter, pocket filter, medium efficiency filter

    MERV13 filter, bag filter, air filter, F9 filter, pocket filter, medium efficiency filter
    1.24-hour hotline service both in English and Chinese, 7 days a week.

    2. Free samples supplied upon request with freight collected through DHL.

    3. One-stop purchase assistance is available for both new and old customers who need items other than our products from China.
    4. Site installation instruction can be provided if necessary at reasonable cost-sharing basis.

    MERV13 filter, bag filter, air filter, F9 filter, pocket filter, medium efficiency filter


    MERV13 filter, bag filter, air filter, F9 filter, pocket filter, medium efficiency filter

    MERV13 filter, bag filter, air filter, F9 filter, pocket filter, medium efficiency filter
    1.Q: Are you a factory or trading company?
    A:We are a professional factory so that we offer competitive factory price to our customers.

    2.Q: What's the delivery time?
    A: For products in stock, within 5-8 days after receiving your payment. For customized order, about 10-18 days after confirmed every details.

    3.Q: What is your terms of payment?
    A: T/T is accepted, 30% downpayment, and the rest of 70% should be paid before delivery. We'll show you the photos of the products and packages before you pay the balance.

    4.Q: What's your packing?
    A: Full consideration of practical situation: foam/carton box, anti-rust paper, small box and carton, etc.

    non-woven fabric bag pocket air filter, f9 pocket bag air filter,aluminum alloy bag air filter

    • Condition:Used
    • Year:0.5
    • Efficiency:F9
    • Construction:Bag Filter
    • Filtration Grade:Medium Filter
    • Medium Material:Synthetic Fiber
    • Place of Origin:Guangzhou,China
    • Brand Name:GZXC
    • Model Number:XCAF-M005-1
    • Dimension(L*W*H):290*592*600mm
    • Weight:CUSTOMIZED
    • Certification:CE, ISO, ROHS
    • Warranty:1 year
    • After-sales Service Provided:No overseas service provided
