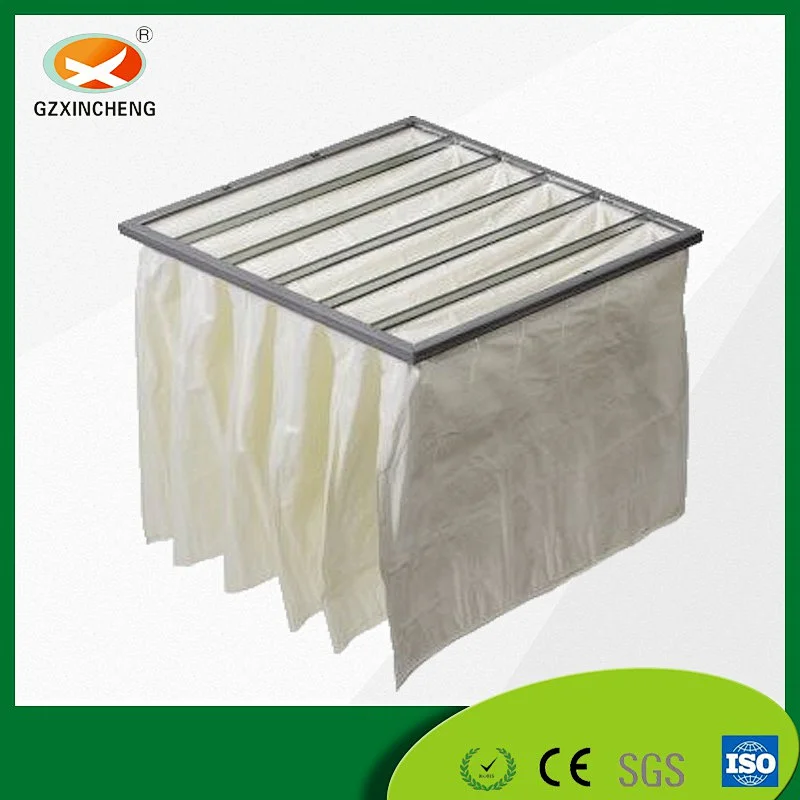

Non-woven Fabric Bag Pocket Air filter

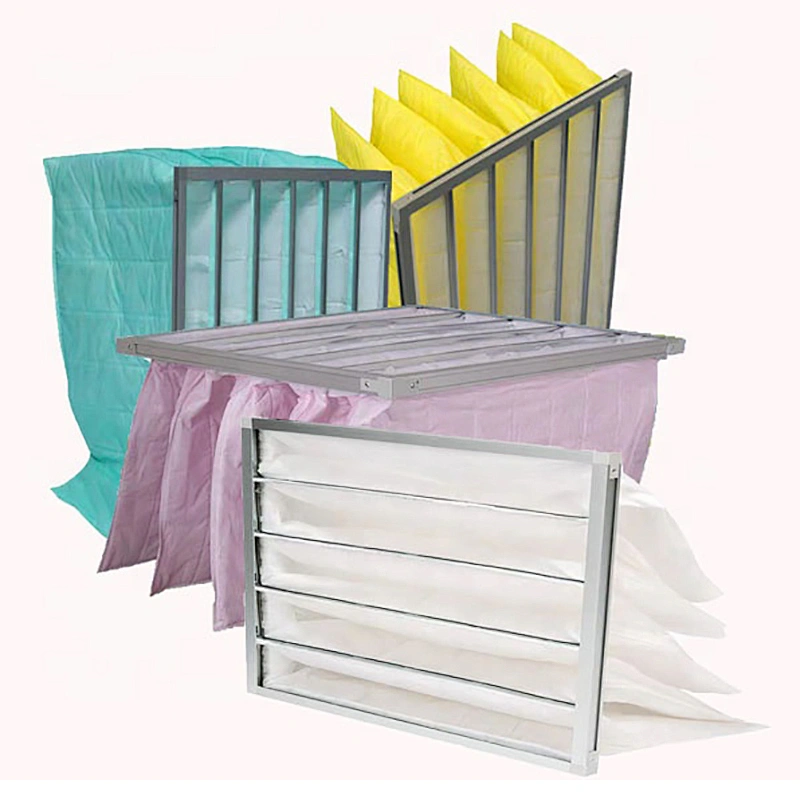

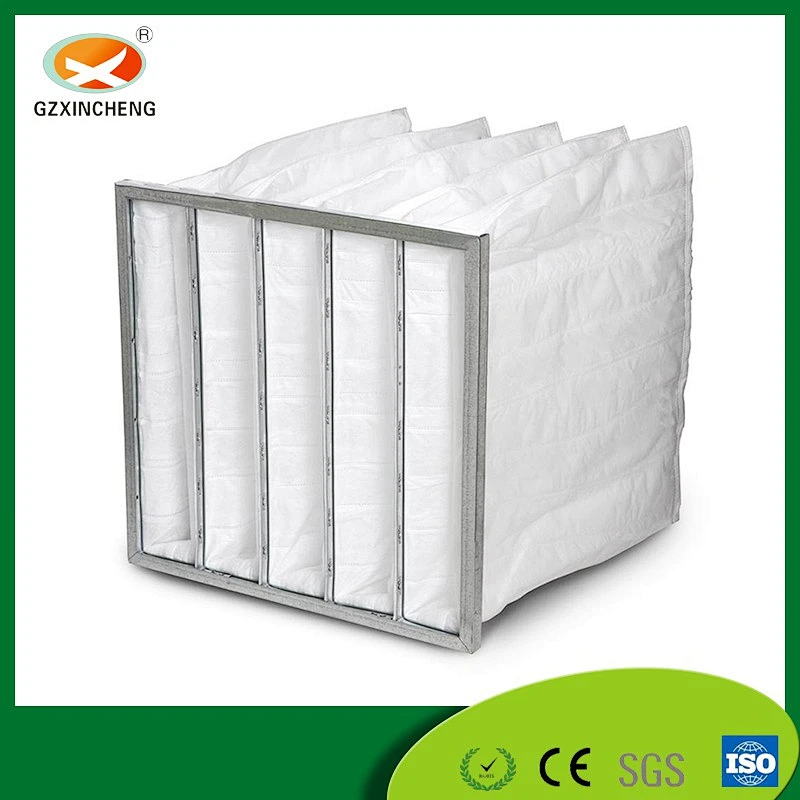

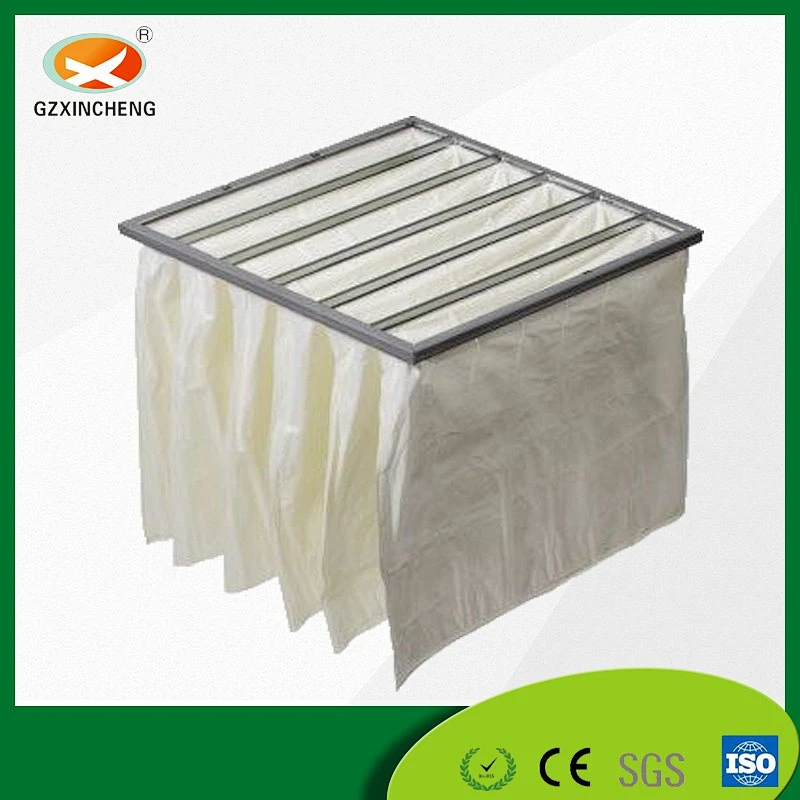

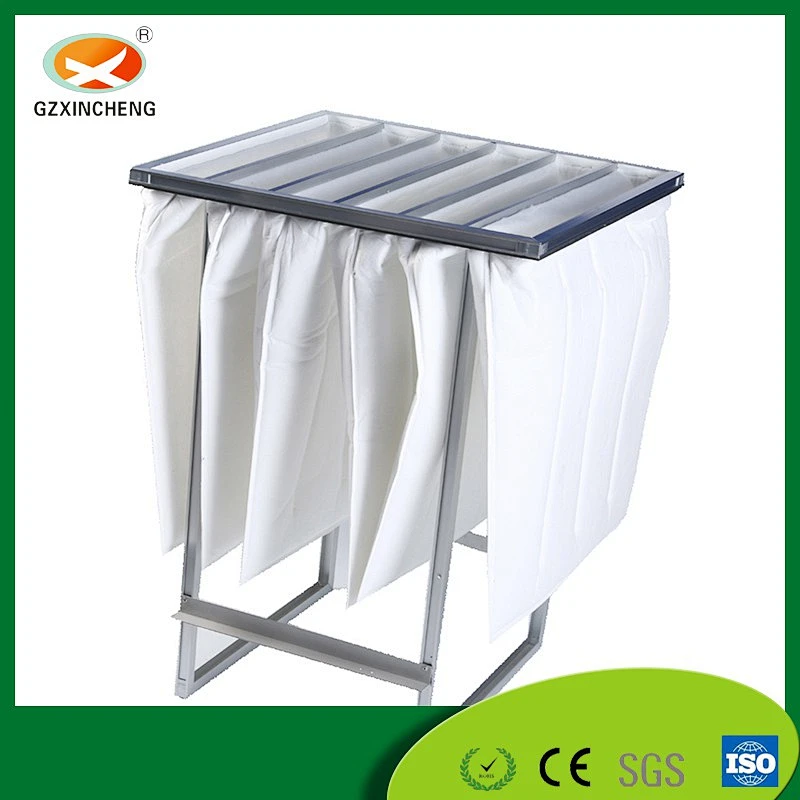

EN779 F5 Non-woven Fabric Bag Pocket Air filter

Model NO. XCAF-M001
US $8.00-US $28.00
  • Delivery:FOB, CFR, CIF, EXW
  • Minimum order quantity:50 pieces
  • Supply Ability:3000 pieces / Month
  • Country of Origin:Guangzhou,China
  • Stock Time:6 Days
  • Strong versatility. The structure and dimensions of the bag filter are uniform with the internationally accepted bag filter. Therefore, it is suitable for most central air conditioning and centralized ventilation systems

    1.Specification:

    592*592*600mm(Customized)

    6. Min. Order Quantity:

    40 pieces

    2.Medium Material:

    Non-woven fabric

    7.Efficiency Grade:

    F5,F6

    3.Frame:

    Aluminum alloy/Galvanized plate/
    Stainless steel plate

    8.Application:

    Ventilation System of Workshop/Warehouse/Construction Building/Container House/Factory

    4.Type:

    Medium Efficiency Bag/Pocket filter

    9.Filter Object
    Particles:

    ≥0.5 microns

    5.Humidity:

    ≤100%RH

    10.Instantaneous Temperature Resistance:

    ≤120ºC

    Model

    W(mm)

    H(mm)

    D(mm)

    Number of pockets

    Rated air flow/Initial

    Pressure drop(m³/h&pa)

    Filtration area

    EN779

    Filter material color

    35%

    592

    592

    600

    6

    2550/45

    3400/55

    4250/75

    4.4

    F5

    White

    290

    592

    600

    3

    1250/45

    1700/75

    2100/75

    2.2

    592

    592

    600

    8

    2550/40

    3400/50

    4250/70

    5.6

    290

    592

    600

    4

    1250/50

    1700/50

    2100/75

    2.8


    1.Washable.The bag filter produced by our company can be used repeatedly and the filter has a service life of up to one year.
    2.Bag Air filter can bear the larger working pressure. Less pressure loss,low operating cost and obvious energy-saving effect.
    3.The resistance is small. Non-woven fabric material, reasonable structure, reduce bag filter resistance to low level.
    4.Strong versatility. The structure and dimensions of the bag filter are uniform with the internationally accepted bag filter. Therefore, it is suitable for most central air conditioning and centralized ventilation systems.
    5.Unique structure. The outer frame adopts aluminum alloy frame or galvanized plate frame, which is convenient for complete recovery and utilization , so that the bag air filter has low structural resistance and long service life.



    1. air purification system of general construction building.
    2. Medium filtration before HEPA air filter.
    3. Secondary filtration of purification workshops.
    4. Ventilation system for hospitals, pharmaceutical factories, electronics factories, spray paint rooms and other higher requirements for cleaning air.



    Guangzhou Xincheng New Materials Co., Limited, founded in 2012, located adjacent to Zhengguo Town, Zengcheng,Guangzhou,is a high-technolgical enterprise in the field of purification and related construction and decoration. Xincheng is composed of a color steel sandwich panel factory, a prefabricated container house factory and an air filter factory, equipmed with 3 automatic sandwich panel production lines, two high efficiency air filter production lines and other auxiliary production and inspection equipment. Adhering to the business philosophy of"let the peer respect, let the customer trust", through the cooperation with universities and scientific research institutions, Xincheng has been committed to product research and development, innovation and quality management, possessed its own invention patents and trademark, obtained CE, ROHS, SGS and other quality certifications, and its products have well sold to many places at home and abroad.




    1.24-hour hotline service both in English and Chinese, 7 days a week.
    2. Free samples supplied upon request with freight collected through DHL.
    3. One-stop purchase assistance is available for both new and old customers who need items other than our products from China.
    4. Site installation instruction can be provided if necessary at reasonable cost-sharing basis.



    1.Q: Are you a factory or trading company?
    A:We are a professional factory so that we offer competitive factory price to our customers.

    2.Q: What's the delivery time?
    A: For products in stock, within 5-8 days after receiving your payment. For customized order, about 10-18 days after confirmed every details.

    3.Q: What is your terms of payment?
    A: T/T is accepted, 30% downpayment, and the rest of 70% should be paid before delivery. We'll show you the photos of the products and packages before you pay the balance.

    4.Q: What's your packing?
    A: Full consideration of practical situation: foam/carton box, anti-rust paper, small box and carton, etc.

    • Condition:Used
    • Year:0.5
    • Efficiency:F5
    • Construction:Bag Filter
    • Filtration Grade:Pre Filter
    • Medium Material:Synthetic Fiber
    • Porosity:Good
    • Place of Origin:Guangzhou,China
    • Brand Name:GZXC
    • Model Number:XCAF-M001
    • Dimension(L*W*H):287*592*500
    • Weight:CUSTOMIZED
    • Certification:CE,SGS, ISO, ROHS
    • Warranty:1 year
    • After-sales Service Provided:No overseas service provided
